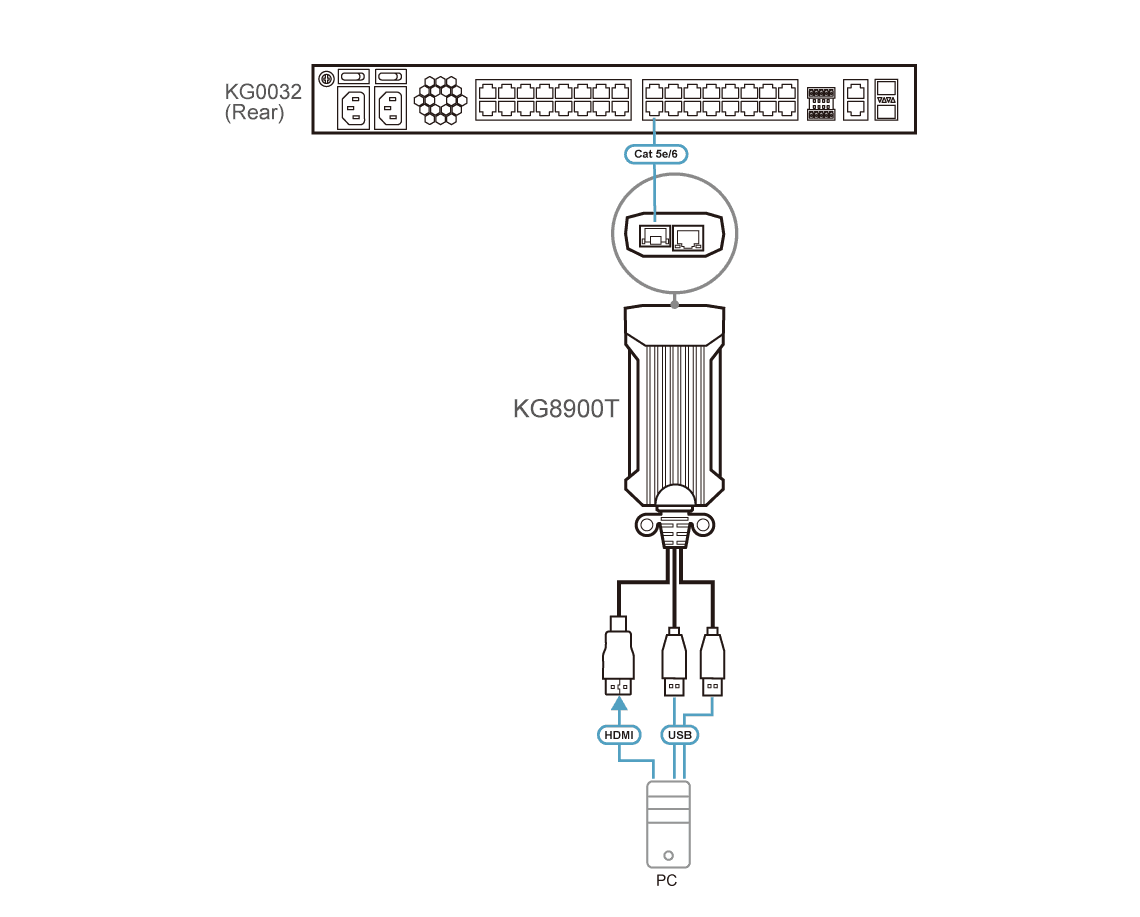

Модул, който свързва сървър с HDMI и USB към KVM over IP комутатор по Cat 5e/6 до 100 m. Видео до 1920 x 1200 @ 60 Hz; 0U формат за монтаж в rack.
Характеристики
- Superior video quality – supports resolutions up to 1920 x 1200 @ 60 Hz; 24-bit color depth
- Distortion-free dynamic video performance up to 100m via a Cat 5e/6 cable
- Virtual Media supports fast transmission speeds up to Read 265Mbps / Write 188Mbps

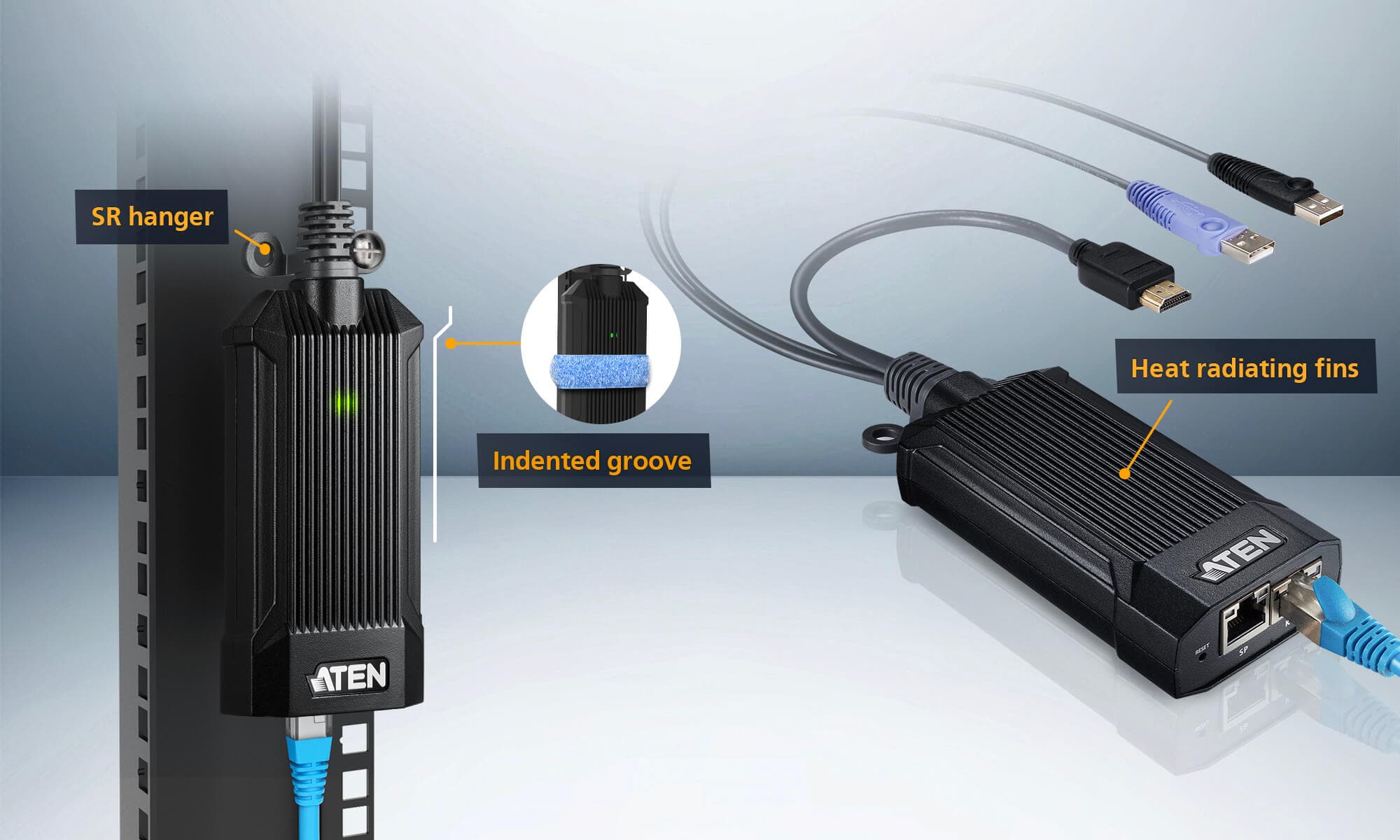

- Space saving – 0U and compact design with SR mounting hanger for organized server rack installation
- Light-weight aluminum die casting shroud – enhanced passive cooling design with streamlining stripe all around the shroud to help quick radiation
- Bus-powered – no external power adapter required with ultra-low power consumption
- Firmware upgradable
- Smart Card / CAC Reader Support
- HDMI Digital Audio Support
Конектори
- Връзка
- 1 x RJ-45 Female (KVM) 1 x RJ-45 Female (SP) (Reserved for future expansion)
- Компютър
- 2 x USB Type A Male 1 x HDMI Male
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
Индикатори
- Връзка
- 1 (Green)- On: Active / Blinking: Transmit/Receive)
- 10/100/1000 Mbps
- 1 (Off / Orange / Green)
- Захранване
- 1 (Green)
- Консумация
- DC5V:3.745W:18BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–95% RH, Non-condensing
Физически характеристики
- Корпус
- Aluminum Die-casting Housing
- Тегло
- 0.27 kg ( 0.59 lb )
- Размери (Д x Ш x В)
- 12.20 x 5.80 x 2.58 cm (4.8 x 2.28 x 1.02 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
