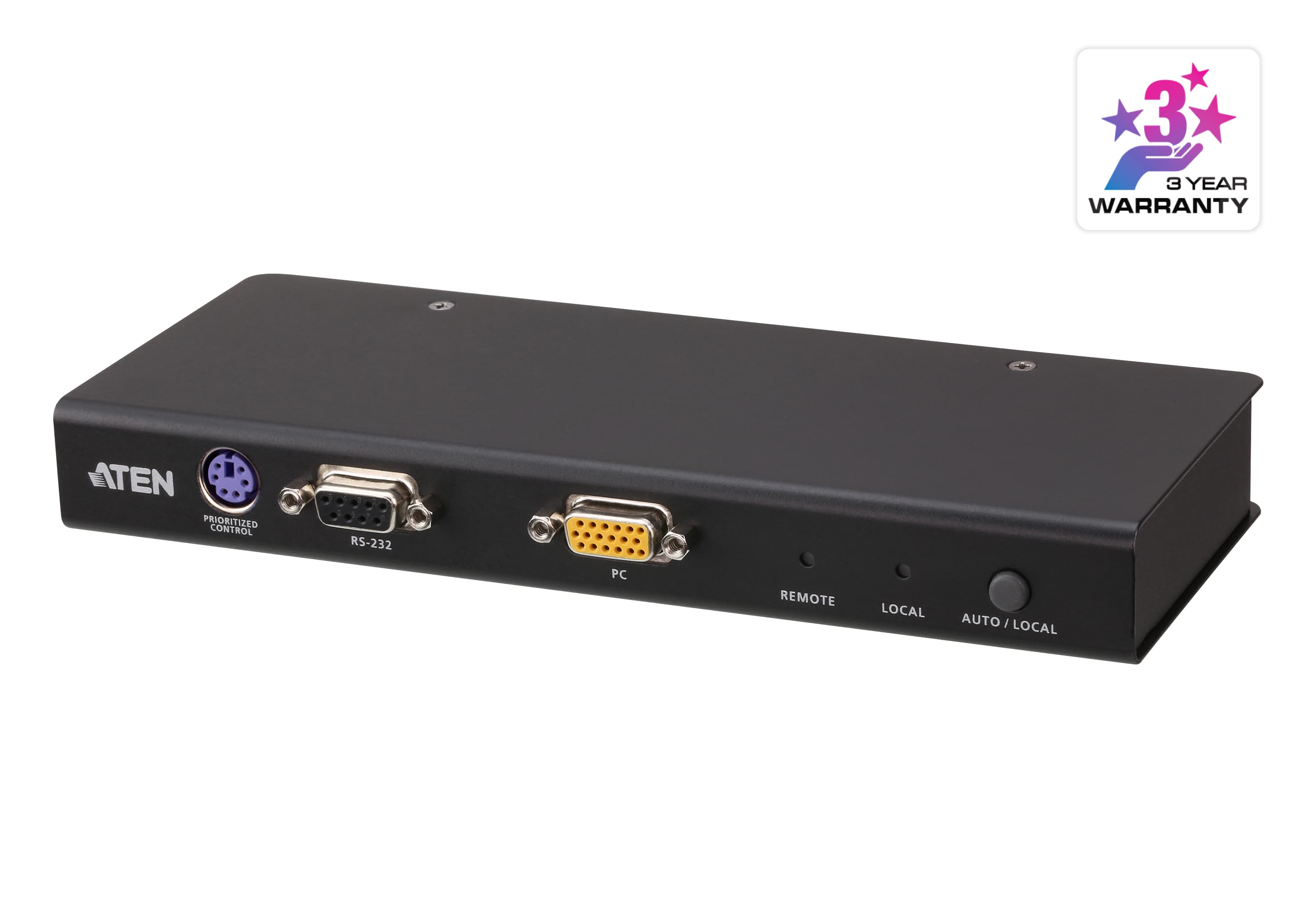

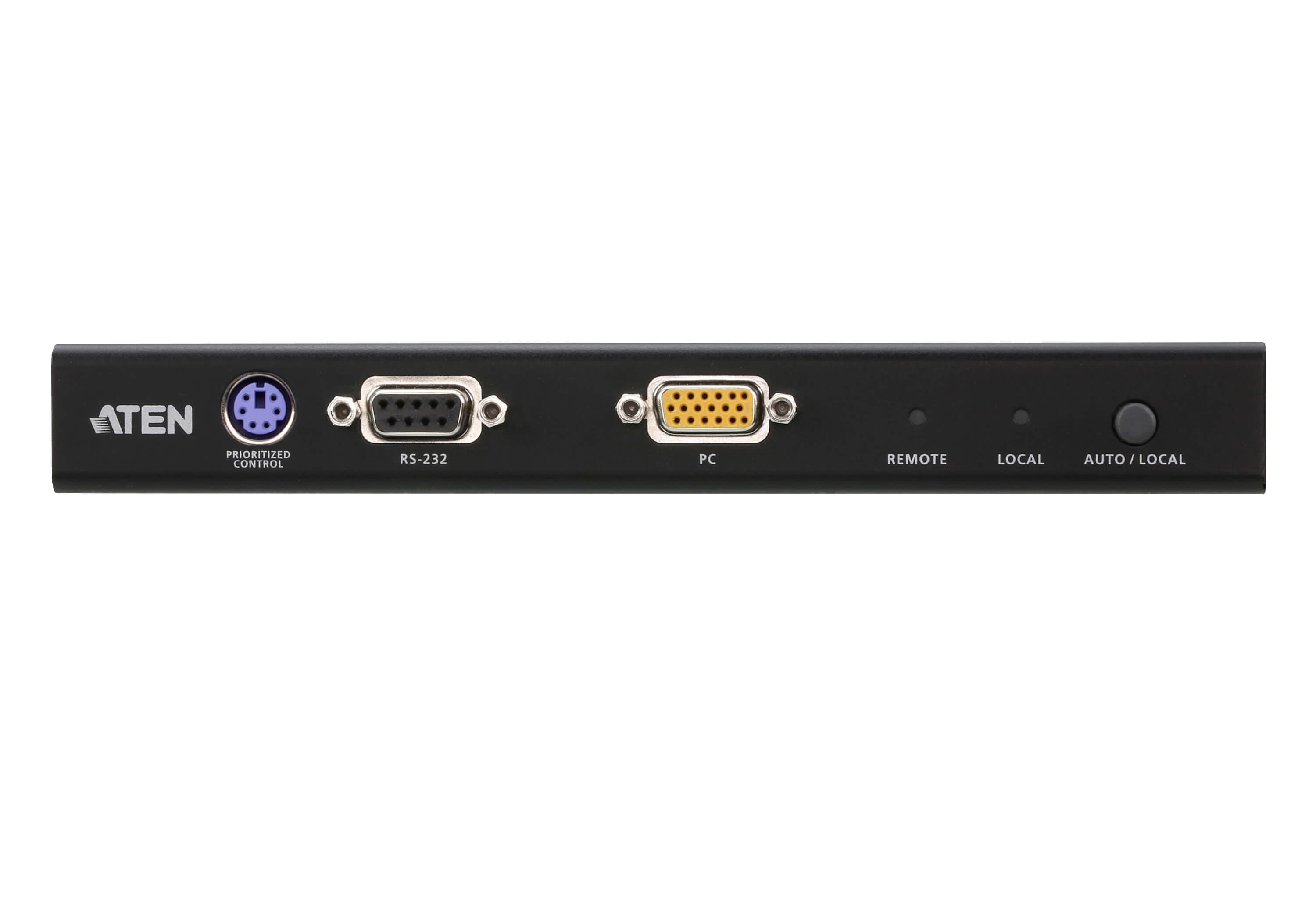

USB-PS/2 KVM Adapter Module with Local Console and Access Control Box Kit
KA7171AKСнет от производство

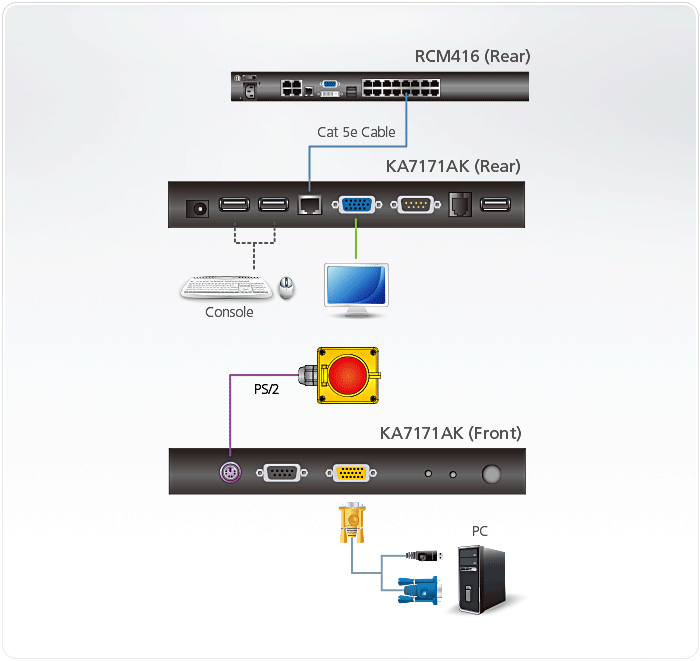

KVM адаптерен модул с локална конзола, окомплектован с Access Control Box за управление на достъпа. Свързва компютър с PS/2 или USB клавиатура и мишка към KVM комутатор по Cat 5e/6 кабел.
Характеристики
- Compatible with ATEN 2XRT-0015G KVM over IP Access Control Box to grant users at the local console full control of access to servers
- Cat 5e/6 cable connects the device and KVM switch
- Supports computers with PS/2 or USB keyboards and mice
- Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
- Pushbutton operating mode selection for privileged console control
- Built-in ASIC for greater reliability and compatibility
- USB overcurrent detection and prevention
- Built-in ESD protection and surge protection
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
- Supports VGA , SVGA , SXGA , UXGA , WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
- Easy to install – no software required - connecting cables to the devices is all it takes * This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

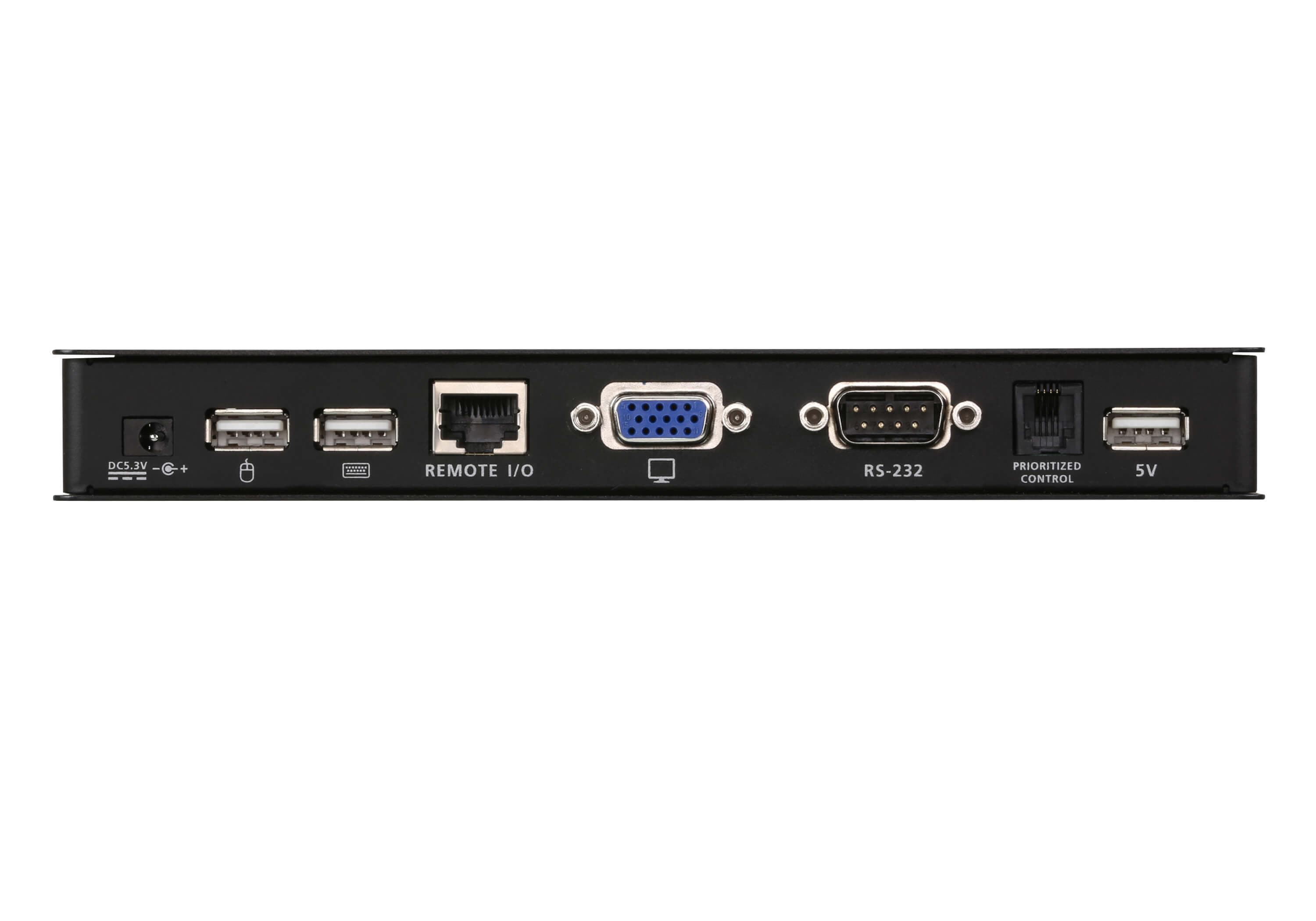

Конектори
- Конзолни портове
- 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue)
- KVM портове
- 1 x SPHD-18 Female (Yellow)
- Захранване
- 1 x DC Jack (Black)
- USB порт
- 1 x USB Type A Female (White)
- Управление
- 1 x PS/2 1 x RJ-11 Female (Reserved)
- RS-232
- 1 x DB-9 Male (Reserved) 1 x DB-9 Female (Reserved)
Бутони
- Избор на работен режим
- 1 x Pushbutton
Индикатори
- Локално
- 1 (Green)
- Отдалечено
- 1 (Green)
Емулация
- Клавиатура / мишка
- PS/2, USB
- Видео
- Up to 1920 x 1200 @ 60Hz; DDC2B
- Консумация
- DC5.3V:1.96W:16BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.49 kg ( 1.08 lb )
- Размери (Д x Ш x В)
- 20.30 x 8.64 x 2.50 cm (7.99 x 3.4 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
