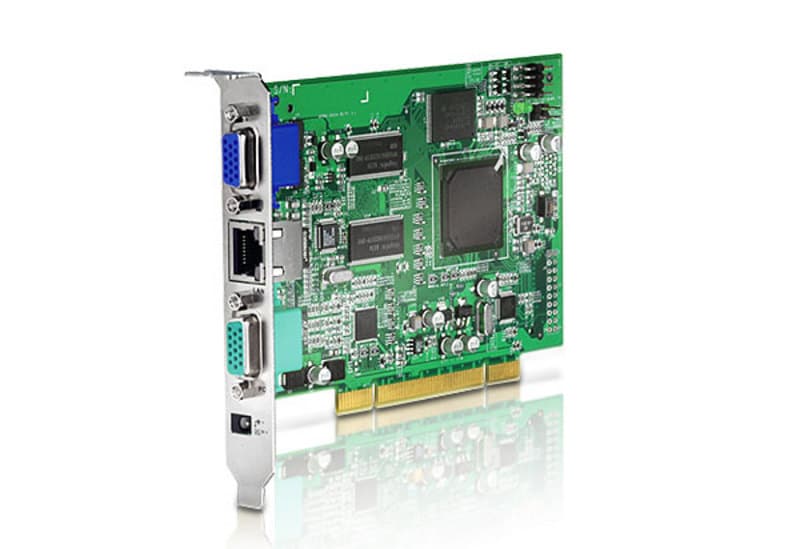

PCI карта за отдалечен достъп през IP до сървъра, в който е монтирана. Виртуална медия по USB 2.0, отдалечено управление на захранването и рестартиране.
Характеристики

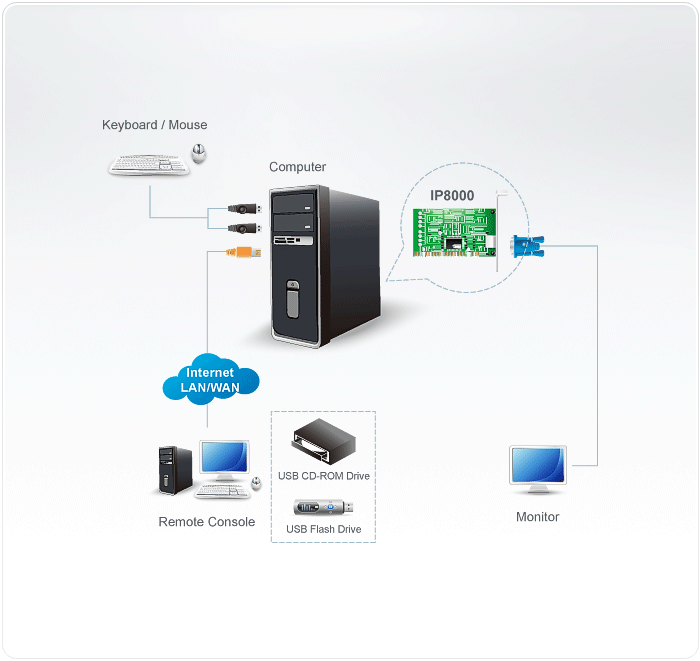

- Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world
- Virtual media via USB 2.0 data transmission
- Remote power control and reset support
- Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing
- Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
- External authentication support: RADIUS
- Web-based Windows and Java implementations allow the server to be controlled from any browser
- Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems
- Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
- Supports 10Base-T, 100Base-T
- Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions
- Bandwidth optimization via grayscale and video quality setting
- Advanced security features include password protection and advanced encryption technologies
- Secure 128-bit SSL encryption
- Enable/disable browser operation
- Three level authentication - Multi - Administrators, Users, Viewers
- Event logging
- Remote fi rmware upgrading
- Host-side OS support– Windows ; Redhat 7.1 and above; FreeBSD, Novell
Компютър
- Директно
- 1
Конектори
- Компютър
- 1 x SPHD-15 Female (Green)
- Видео изход
- 1 x HDB-15 Female (Blue)
- LAN портове
- 1 x RJ-45 Female
- Захранване
- 1 x DC Jack
- Конзолни връзки
- 1
Индикатори
- Връзка
- 1 (Green)
- 10/100 Mbps
- 1 (Green / Orange)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 1600 x 1200@60Hz; DDC2B
- Консумация
- DC5V:5.03W:24BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Тегло
- 0.10 kg ( 0.22 lb )
- Размери (Д x Ш x В)
- 15.35 x 12.00 x 2.15 cm (6.04 x 4.72 x 0.85 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
