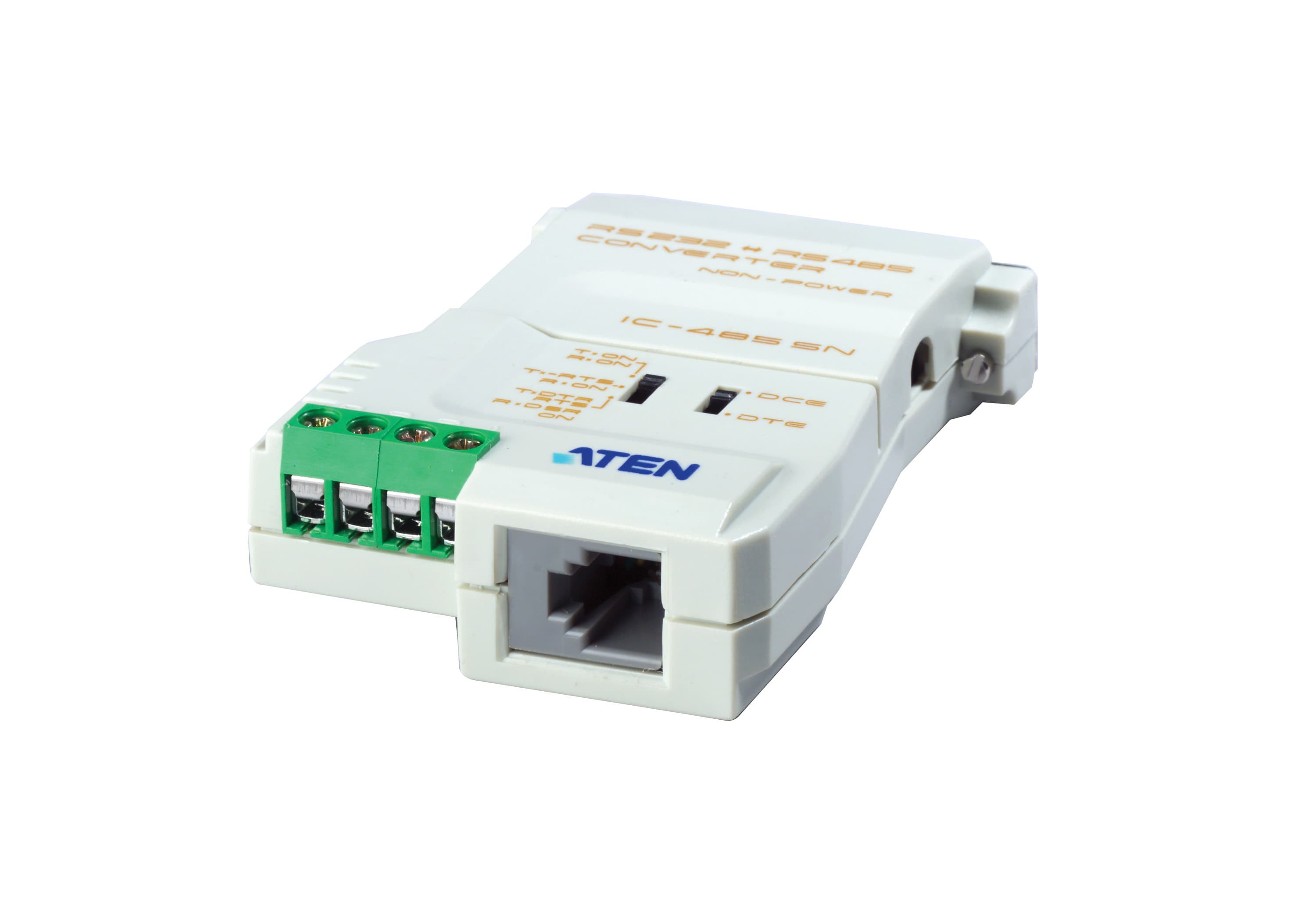

Двупосочен конвертор между RS-232 и RS-422/RS-485 за разстояния до 1200 m, работещ без външно захранване. Скорост до 100 Kbps; поддържа point-to-point, multidrop и simplex/duplex режими.
Характеристики
- Data transmission controlled by the RTS signal.
- DCE/DTE selectable.
- Point to point, multidrop, and simplex/duplex link selection.
- Four wire full duplex; Four wire half duplex.
- Compact size.
- Cable distance of up to 1200m (4000 ft.).
- Non powered operation.
- Supports baud rates up to 115.2Kbps.
- OS Support: Windows 2000, Windows XP
Спецификация
- Конектори
- 1 DB-25 Female (RS-232) RS-485 / RS-422 Four Terminal Block 1x RJ-11 Female
- Превключватели
- DCE, DTE TxON, RxON TxRTS, RxON TxDTR/RTS,RxDSR/ON
- Консумация
- DC9V:0.03W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Обхват на сигнала
- 1200 m [4000'] (Max)
- Скорост на данните
- Up to 100 Kbps under 1200 m [4000']
Работна среда
- Работна температура
- 0 ~50˚C
- Температура на съхранение
- -20 ~ 60˚C
- Влажност
- 0~80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.06 kg ( 0.13 lb )
- Размери (Д x Ш x В)
- 7.90 x 5.45 x 2.10 cm (3.11 x 2.15 x 0.83 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
