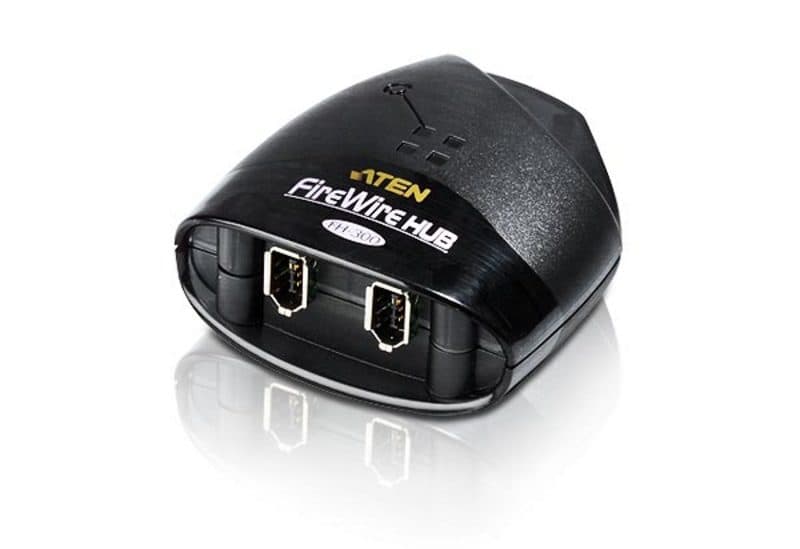

FireWire хъб с 3 порта IEEE 1394a — пренос при 100, 200 или 400 Mbps, като всеки порт автоматично избира най-високата скорост, поддържана от периферията.
Характеристики
- 3 IEEE 1394 ports for more convenient adding and removing of devices.
- IEEE 1394, IEEE 1394a Compliant.
- 100, 200, 400 Mbps data transfer rate; automatically uses the highest speed the peripheral supports.
- Supports hot plugging.
- 6 pin IEEE 1394 I/O connectors.
- DC input terminal for optional external power supply.
- OS Support: Windows 2000, Windows XP, Mac and FreeBSD
Спецификация
- Портове
- 3
Конектори
- USB порт
- 3 x 6 pin IEEE 1394 Std. (Black)
- Захранване
- 1 x DC Jack (Black)
- Индикатори
- 1 (Orange)
- Скорост на данните
- 100 / 200 /400 Mbps (Asynchronous, Isochronous)
- Поддържани стандарти
- IEEE 1394a
- Консумация
- DC 9V, 0.15W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 5˚-40˚C
- Температура на съхранение
- -20˚-60˚C
- Влажност
- 0 ~80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.07 kg ( 0.15 lb )
- Размери (Д x Ш x В)
- 7.76 x 7.02 x 3.12 cm (3.06 x 2.76 x 1.23 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
