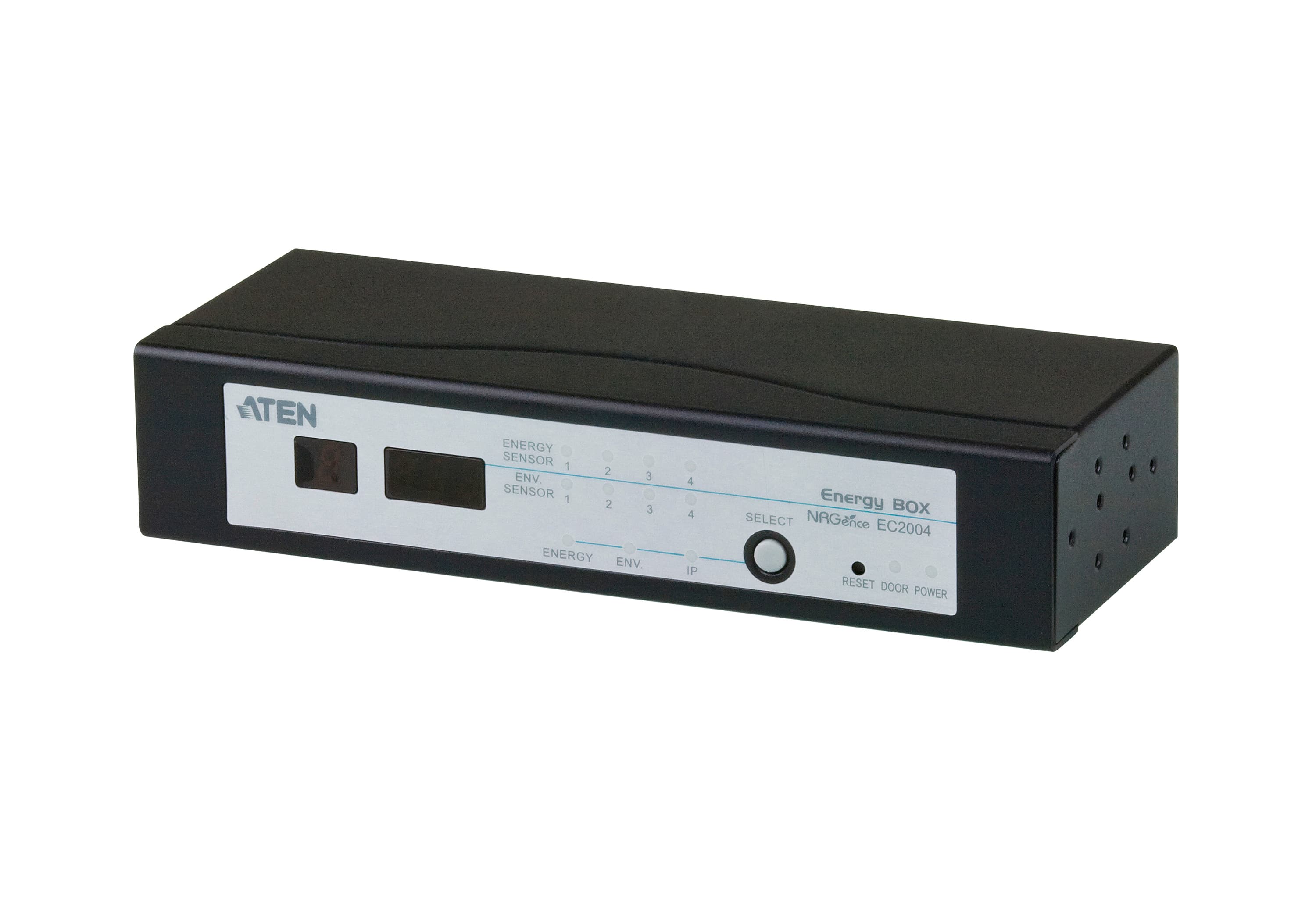

Energy Box W/Real Time Power Monitoring
EC2004Снет от производство

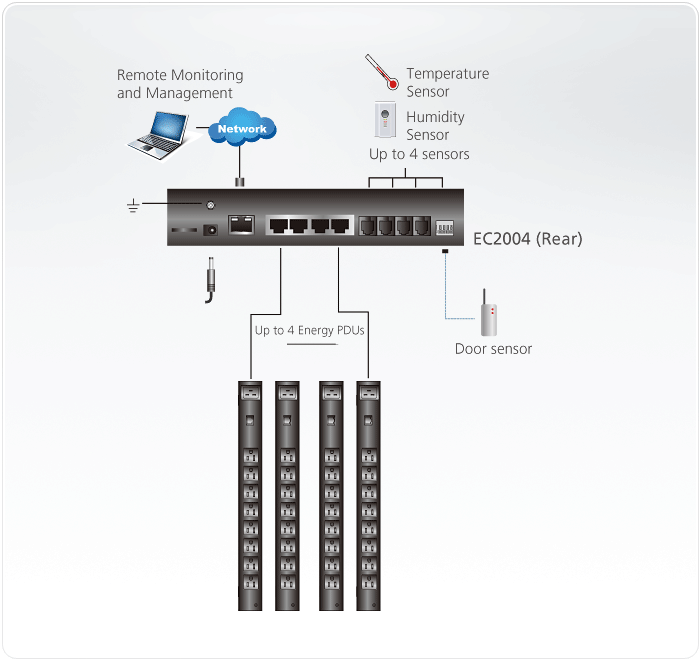

Модул за наблюдение, който следи в реално време консумацията на до четири Energy PDU (0 до 32A на порт); 1U монтаж, 4 порта за сензори на средата и вход за сензор на врата.
Характеристики
- Operation
- Space saving 1U rack mounting with front and rear mounting
- 4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port, 2 Current Energy Sensors Ports, 2 Current/ Voltage Energy Sensors Ports)
- 4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure*
- 4-pin dry contact Rack Door Sensor status monitor
- Maximum Amperage Monitor 32A @ 100V-240V (Energy Box)

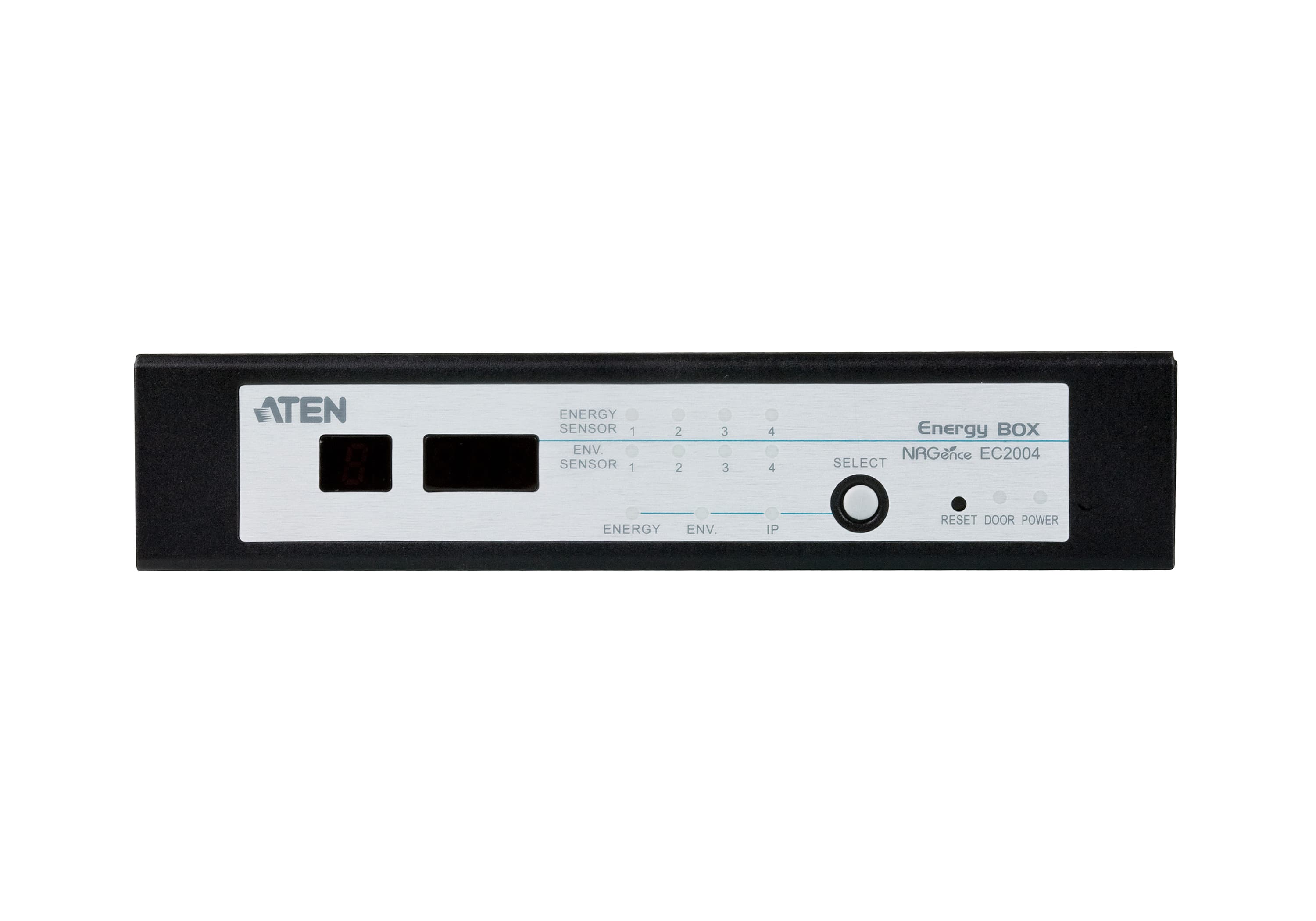

- 3 digit 7 segment front panel LED displays current/sensor/IP address information
- Threshold monitoring for: •Current, Voltage •Temperature* • Humidity* • Differential pressure*
- Threshold alerting through: •Local: audible alarm and LED lights • Remote: SMTP/SNMP trap/Syslog
- Management
- Front panel LED indicators for current, temperature*, humidity*, differential pressure*, and IP address information at the Energy Box
- Remote real-time current/voltage, temperature*, humidity*, and differential pressure* monitoring and management
- Management through eco DC Energy Management Web GUI or 3rd party SNMP manager
- Supports name assignment for individual Energy PDUs
- Event Logging – 128 line event log
- Syslog support
- F/W upgradable
- Remote Access
- Remote management via TCP/IP using built in 10/100Mbps Ethernet port
- Management via built in browser based GUI
- Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
- Supports SNMP Manager V1, V2, V3
- Security
- Strong security features include password protection and advanced encryption technologies – utilizing 128 bit SSL
- RADIUS authorization and authentication * Requires external sensors

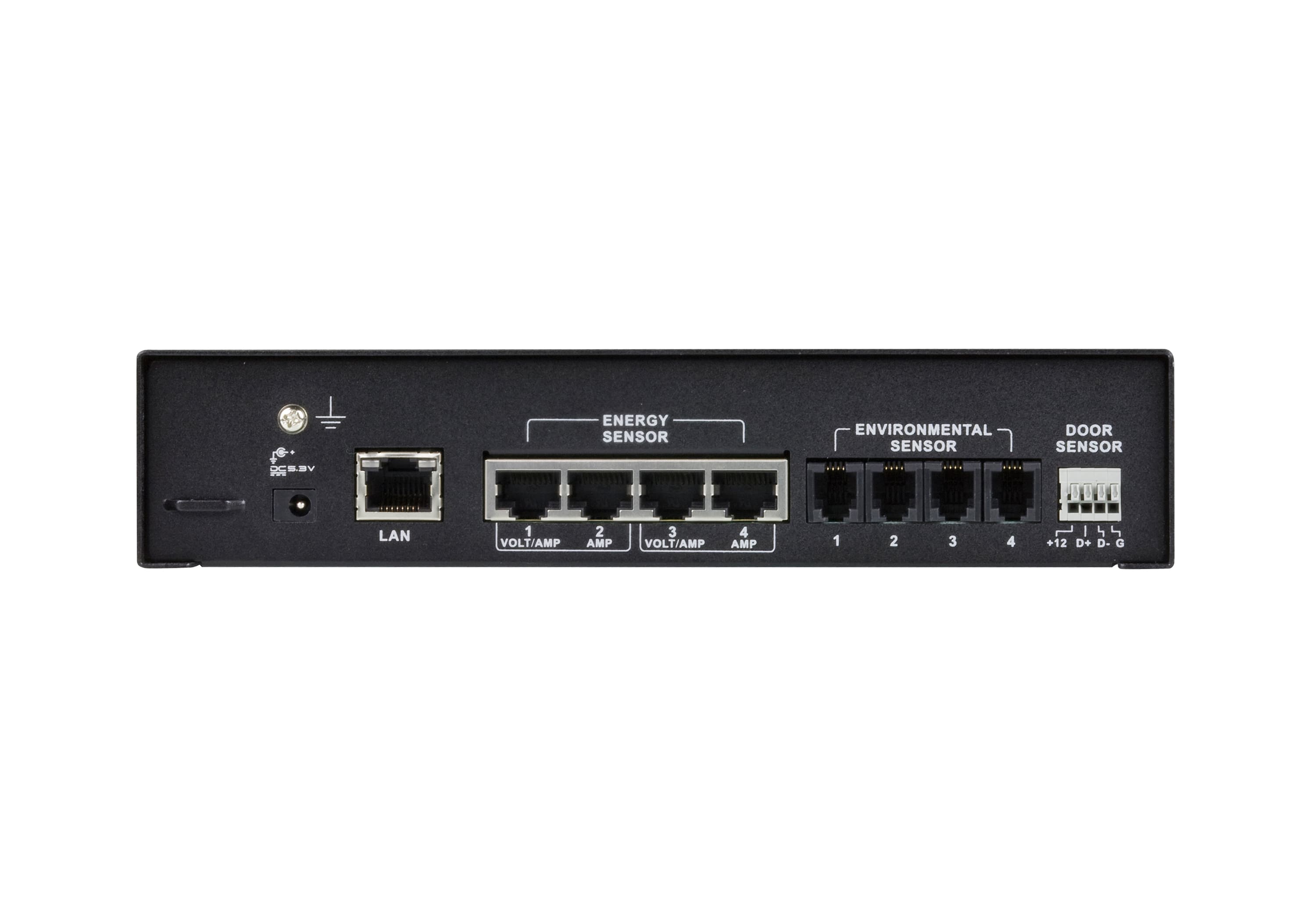

Конектори
- Захранване
- 1 x DC Jack
- Мониторинг на тока
- 2 x RJ-45
- Портове за сензори
- 4 x RJ-11
- Сензор за врата
- 4 Pin Dry Contact
- LAN портове
- 1 x RJ-45 Female with LEDs (Silver/LED Orange/Green)
Индикатори
- Състояние на наблюдаваните PDU
- 4 (Orange)
- ID на порт
- 1 digit 7-segment (Orange)
- Енергия / среда / IP
- 3 (Green)
- Захранване
- 1 (Blue)
- Сензор за врата
- 1 (Red)
- Връзка
- 1 (Orange/Green) 1 (Green)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Избор
- 1 x Selection Button , 1 x Up , 1 x Down
- Диапазон на мониторинг
- 100–240V~, 50/60Hz, 0A to 32A LED Display Resolution: 0.1A Voltage range: 100VAC ~ 250VAC +/-1% Power range: 100W ~ 5000W +/- 2% Current range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
- Работна среда
- 0 - 50˚C
- Температура на съхранение
- -20 - 60˚C
- Влажност (работна / съхранение)
- 0 - 80% RH, Non-condensing
- Корпус
- Metal
Физически характеристики
- Тегло
- 0.64 kg ( 1.41 lb )
- Размери (Д x Ш x В)
- 20.00 x 7.59 x 4.40 cm (7.87 x 2.99 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
