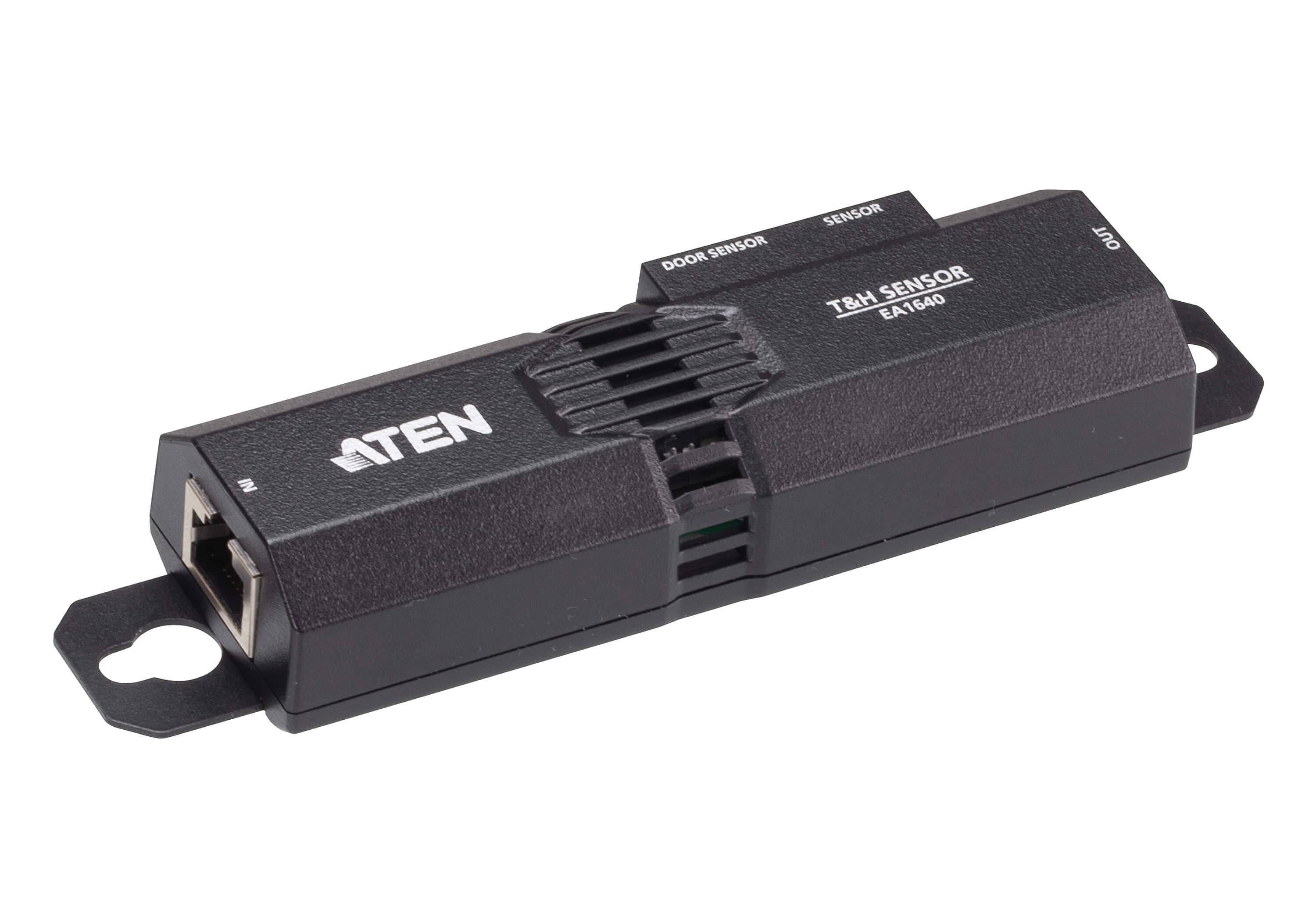

Сензор за температура и влажност към PDU от серията PG на ATEN. Измерва от –10 до +75 °C и от 0 до 100% относителна влажност; до 8 устройства се свързват верижно.
Характеристики
- A humidity and temperature measuring solution for ATEN PG PDU series
- Precise relative humidity accuracy: ±7.5 % RH, 30 – 70 % RH; ±15 % RH, 15 – 40 % RH, 70 – 90 % RH
- Highly accurate temperature measuring: ±1 °C (Max.), 10 – 40 °C; ±1.5 °C (Max.), –10 – 10 °C, 40 – 75 °C
- Supports up to 8 daisy-chained devices

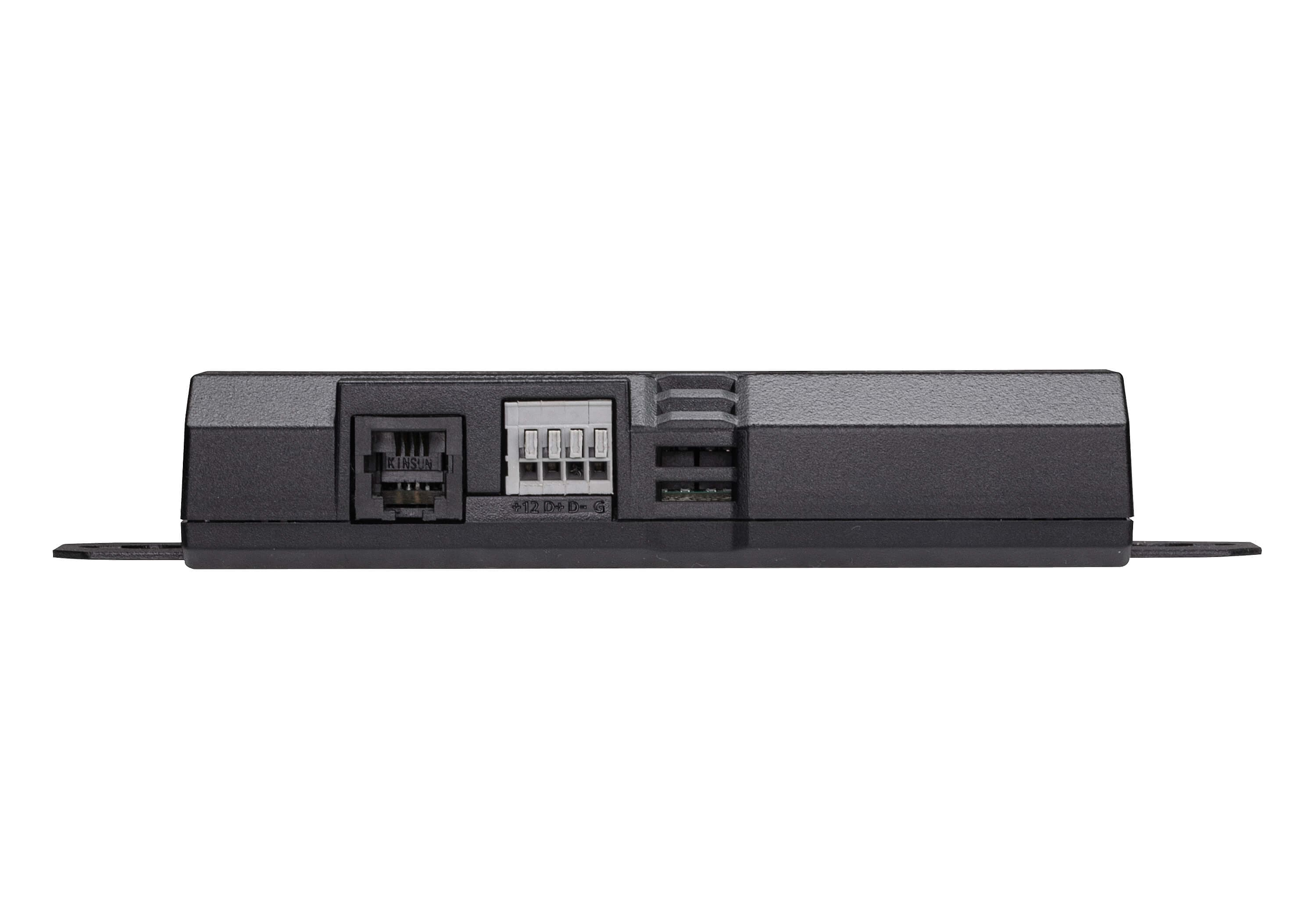

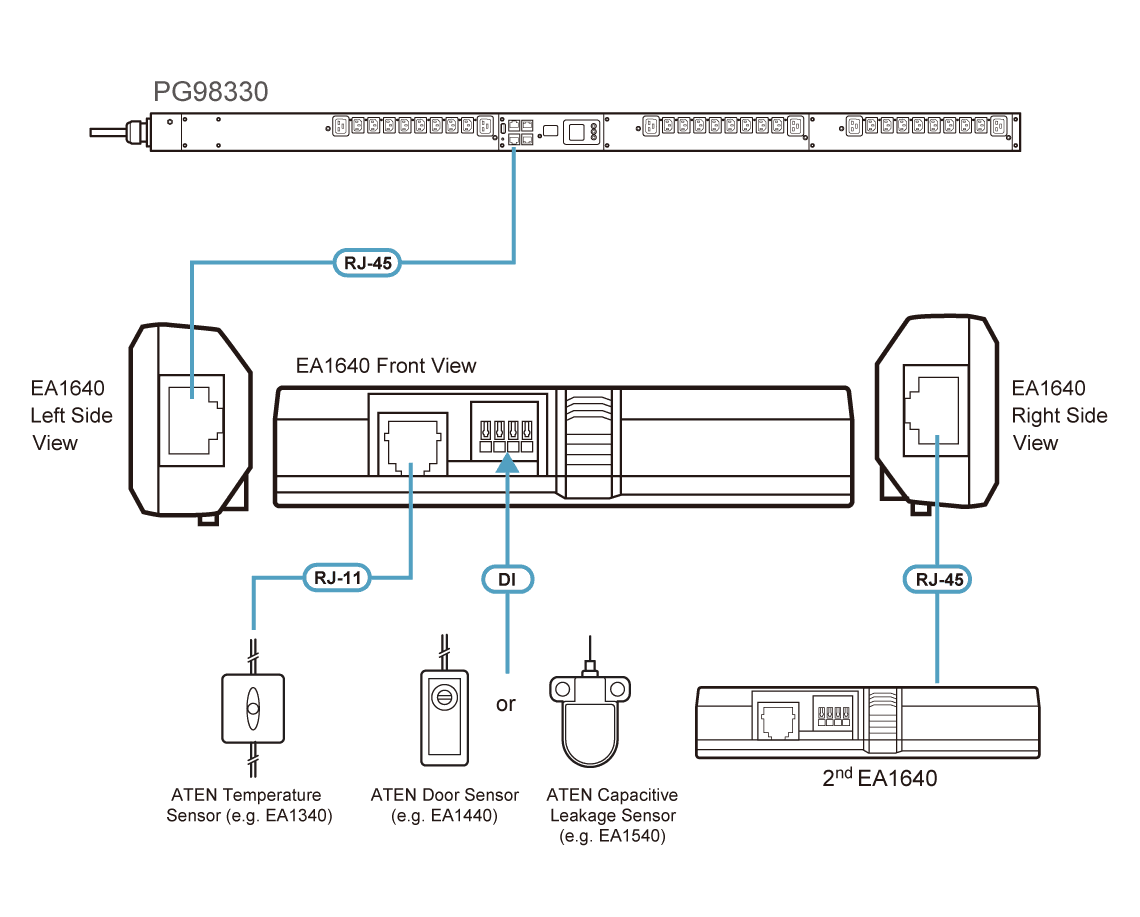

- Multiple interfaces to broaden applications – – 1 x RJ-45 input port, 1 x RJ-45 output port, and 1x RJ-11input port support connection with PG PDU series and EA1140 / EA1240 / EA1340 environmental sensors – 1 x terminal block supports EA1440 / EA1441 / EA1442 door sensor and EA1540 capacitive leakage sensor
- Meets flexible installation purposes – – Included 1.5 m RJ-45 cable for ideal location placement – Contains a magnet for sticking to metallic surfaces – Included rack mount kits enable quick installation inside racks
- Overload protection prevents overheating of the protected equipment
- LED indicator is visible through the enclosure
- Prevents device malfunctions thanks to early detection in case of overheating / excessive humidity
- Suitable for applications that require precise measuring, such as server rooms, data centers, hospitals, smartfactories, and green offices
Електрически характеристики
- Портове за сензори
- 1 Port Terminal Block for Door Sensor (EA1440/EA1441/EA1442)/ Capacitive Leakage Sensor (EA1540) 1 Port RJ-11 for Original Temperature Sensor (EA1140/EA1240/EA1340)
Измерване
- Диапазон
- Temperature: –10 to +75 °C Humidity: 0 to 100%
- Точност
- Temperature: ±1°C (max), 10 to 40 °C ±1.5°C (max), –10 to 10 °C, 40 to 75 °C Humidity: ±7.5% RH, 30–70% RH ±15% RH, 15–40% RH, 70–90% RH
- Консумация
- DC12V:0.273W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Влажност (работна и при съхранение)
- 0 – 80% RH, Non-Condensing
- Температура (работна / съхранение)
- –10 to 75 °C / -20 – 70℃
Физически характеристики
- Размери (Д x Ш x В)
- 10.44 x 3.57 x 2.14 cm (4.11 x 1.41 x 0.84 in.)
- Тегло
- 0.05 kg ( 0.11 lb )
- Дължина на кабела
- 1.5M(RJ45+RJ45) round cable
- Корпус
- Black Polycarbonate
Съответствие
- EMC сертификация
- EMC/FCC, Class A
- Сертификация за безопасност
- By Request
Индикатори
- LED индикатор
- [Solid]: EA1640 is in working mode [Fast Blinking (for 2 minutes)]: EA1640 receives the command “FindMe”. [Slow Blinking (for 10 seconds)]: Over-current protection (OCP) is triggered, and the sensor(s) connected to EA1640 is going to power off. [Slow Blinking]: Firmware upgrade of EA1640 is in progress.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
