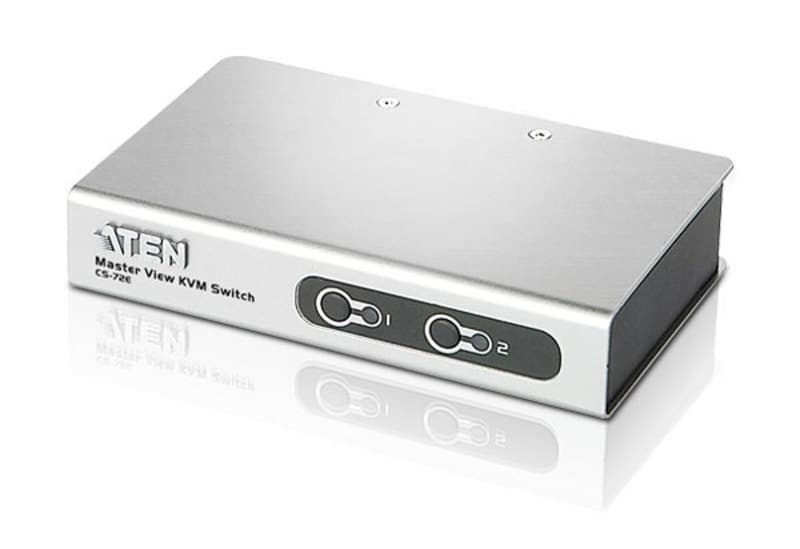

2-Port PS/2 VGA Slim KVM Switch
CS72EСнет от производство
VGA KVM превключвател в компактен корпус — една PS/2 конзола (клавиатура, монитор, мишка) управлява 2 компютъра. Избор на порт с бутон или клавишна комбинация.
Характеристики
- One PS/2 console controls 2 computers.
- Compact, modern case for convenient attractive placement.
- Custom connector layout.
- Power on detection - automatically switches to the first powered on port.
- Computer selection via front panel pushbuttons and hotkeys.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
- Auto Scan function to monitor computer operation.
- Non-powered.
- OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Pushbutton

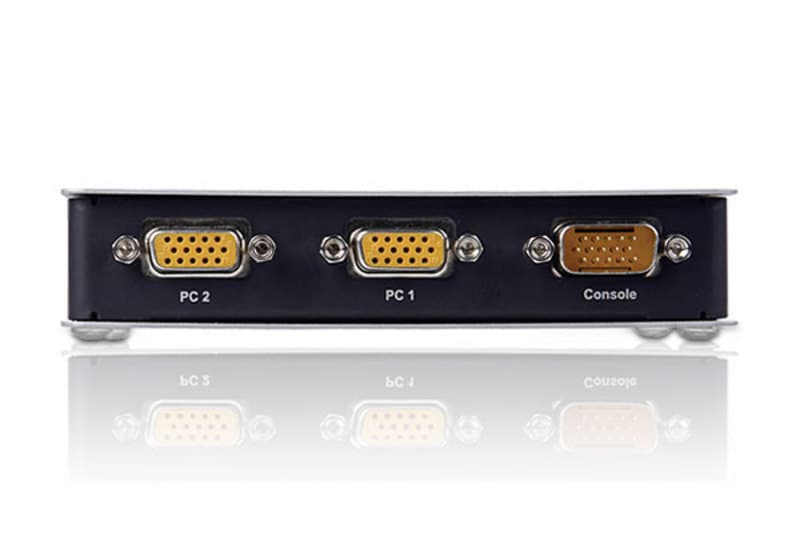

Конектори
- Конзолни портове
- 1 x SPHD-15 Male (Yellow)
- KVM портове
- 2 x SPHD-15 Female (Yellow)
- Захранване
- 1 x DC Jack

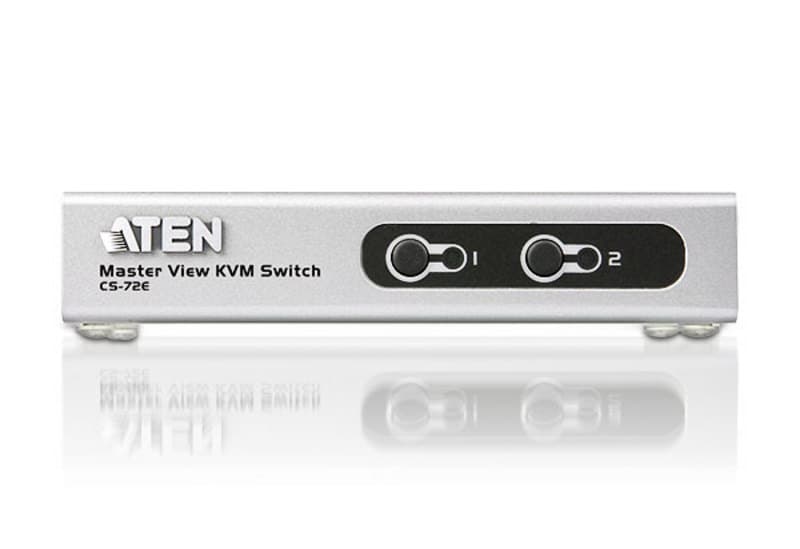

Бутони и превключватели
- Портове
- 2 x Pushbutton
Индикатори
- Избран
- 2 (Green)
Емулация
- Клавиатура / мишка
- PS/2
- Видео
- 2048 x 1536 @ 60Hz; DDC2B
- Интервал на сканиране
- 5 seconds
- Консумация
- DC5V:0.30W:6BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50˚C
- Температура на съхранение
- -20-60˚C
- Влажност
- 0~80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.32 kg ( 0.7 lb )
- Размери (Д x Ш x В)
- 12.50 x 8.15 x 2.50 cm (4.92 x 3.21 x 0.98 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
