2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
CS692
Кабелен KVM превключвател за 2 компютъра с HDMI, с вградени кабели 1.2 m. Избор на порт с дистанционен селектор, клавишни комбинации или мишка; съвместим с HDCP.
Характеристики

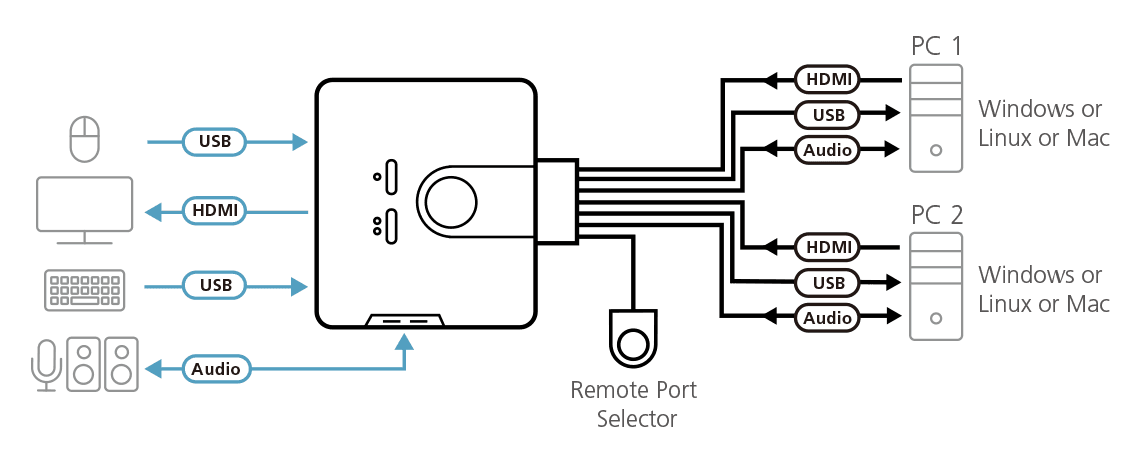

- One KVM console controls two USB HDMI computers
- HDMI compatible; HDCP compatible
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus*
- Multiplatform support - Windows, Mac, Linux

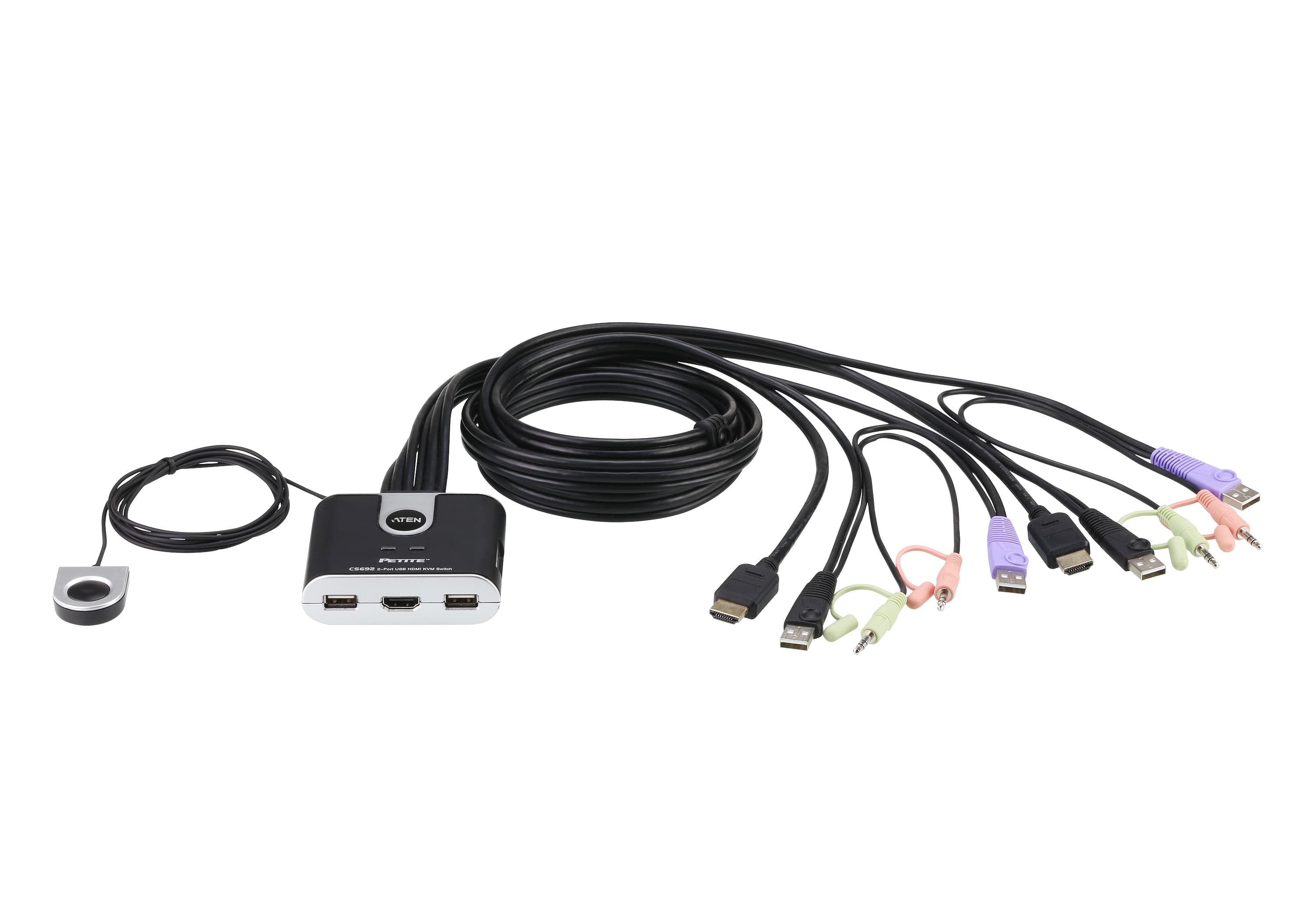

- Compact design, built-in all-in-one cables (2 x 1.2 m)
- Superior video quality - up to 1920 x 1200; 1080p
- Compatible with widescreen LCD monitors
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Bus-Powered
- Firmware upgradable Note: 1. HD audio through the HD monitor's built-in speakers cannot be switched independently. 2. PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers. 3. May require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
Спецификация
- Връзки към компютри
- 2
- Избор на порт
- Hotkey, Remote Port Selector, Mouse
Конектори
- Конзолни портове
- 1 x HDMI Female (Black) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
- KVM портове
- 2 x HDMI Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Индикатори
- KVM
- 2 (Green)
Дължина на кабела
- KVM
- 2 x 1.2 m
- Дистанционен избор на порт
- 1.8 m
Емулация
- Клавиатура / мишка
- USB
- Видео
- 1920 x 1080 @ 60 Hz; 1920 x 1200 @ 60Hz
- Интервал на сканиране
- 3, 5, 10, 20 secs. (default 5 secs.)
- Консумация
- DC5V:0.72W:8BTUBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.48 kg ( 1.06 lb )
- Размери (Д x Ш x В)
- 8.24 x 6.65 x 2.52 cm (3.24 x 2.62 x 0.99 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
