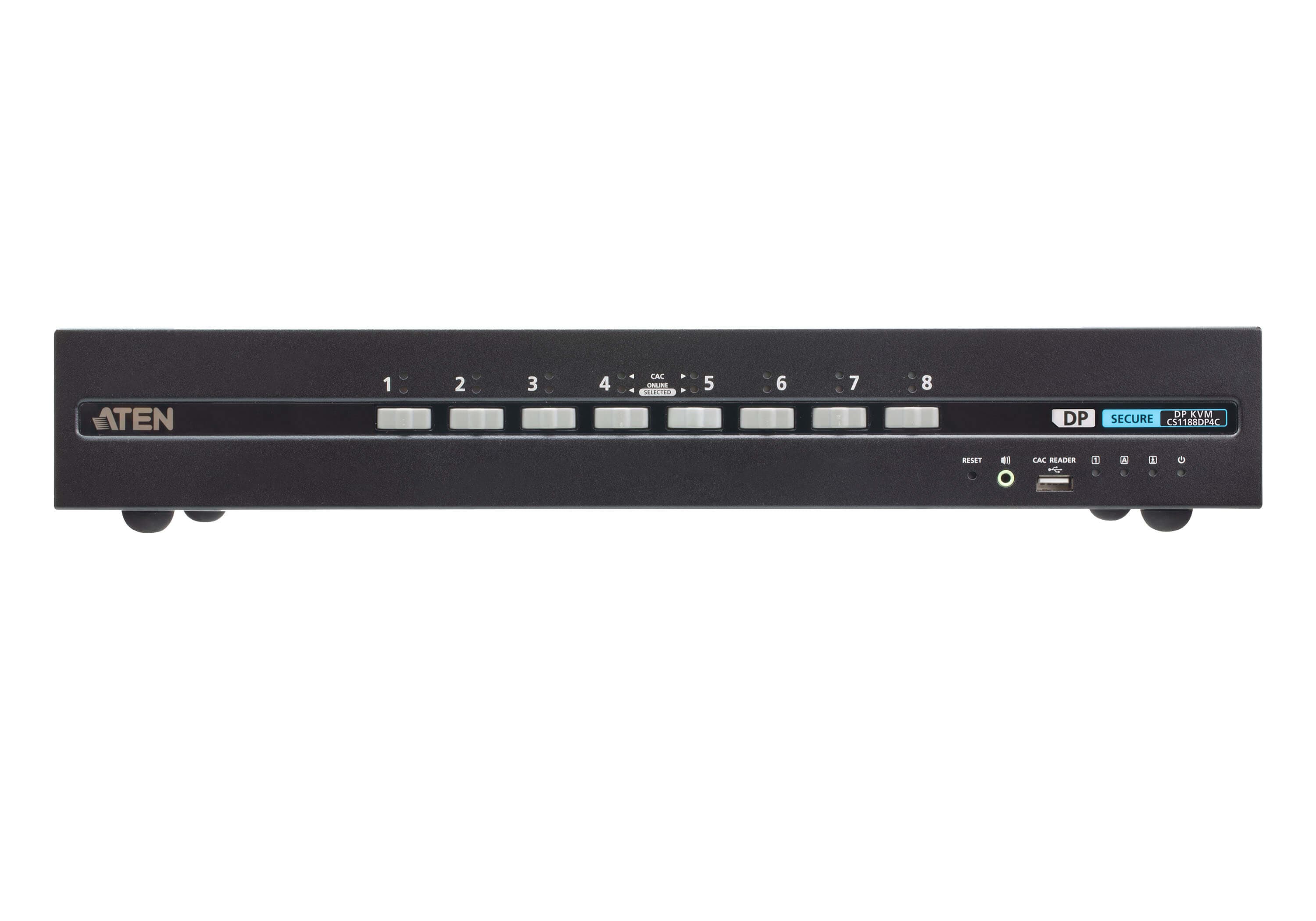

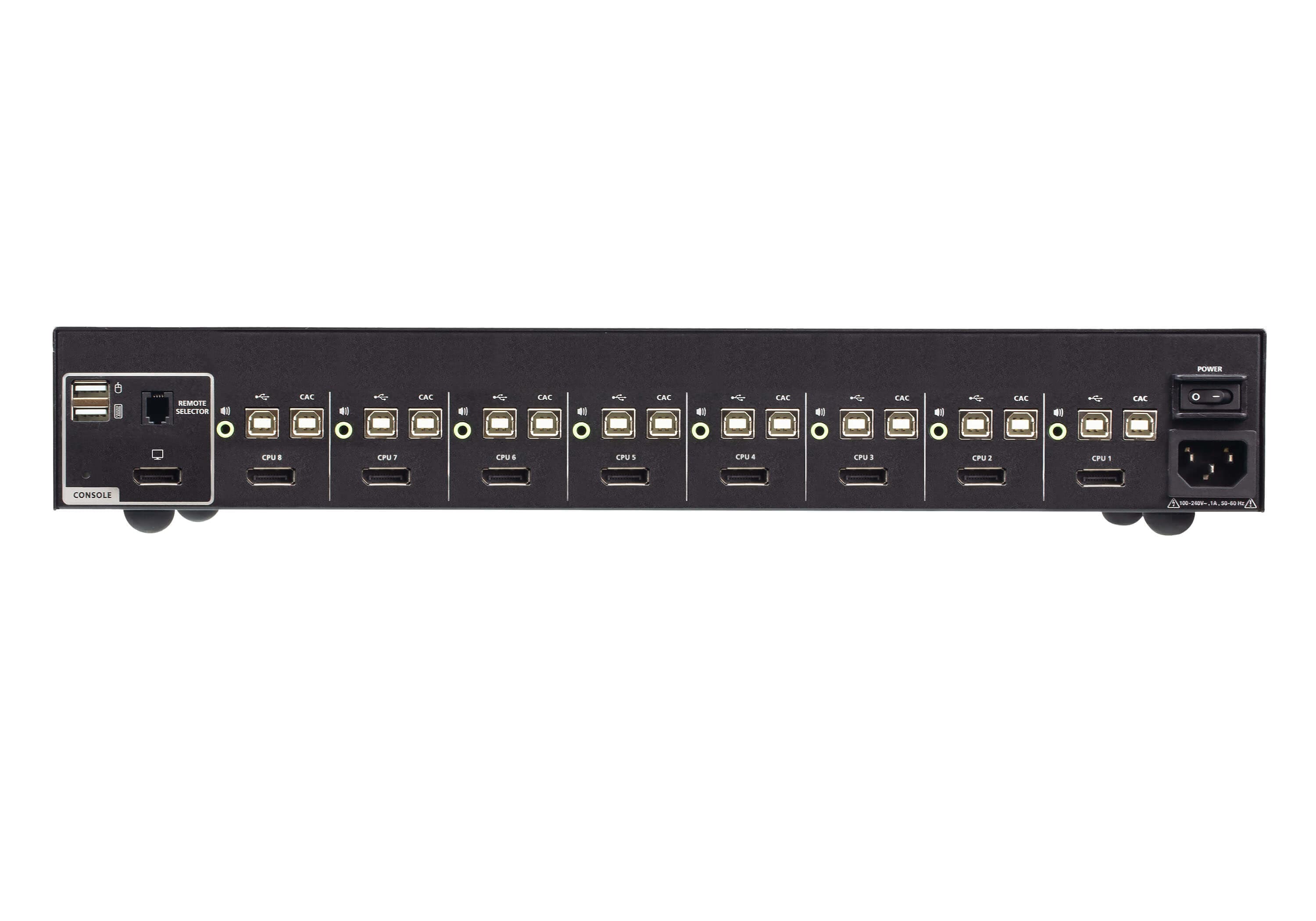

8-Port USB DisplayPort Secure KVM Switch with CAC (PSD PP v4.0 Compliant)

Характеристики

• Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
• Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
• Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
• Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
• Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
• Port selection via pushbuttons / Remote Port Selector (RPS) 1only to enhance security
• LED indicators for peripheral filtering and KVM security status
• Strict audio filtration protects against audio leakage
• Rugged metal enclosure
• True data path isolation – data cannot be transferred between computers
• The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers
• Unidirectional data flow between console devices and the selected computer is ensured
• Supports analog audio (speaker only) 2
• The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
• Supports administrative configuration of CAC Port filtering to accept or reject specific USB authentication devices
• Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
• Provides administrative functions for authorized administrators to audit KVM log data
• Supports enable / disable CAC function by port
• Superior video quality – up to 4K (3840 x 2160 @ 30 Hz) 3
• Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources 1. The Remote Port Selector is not supplied in the package and requires a separate purchase. 2. Only analog speaker data input is supported. 3. The DisplayPort Secure KVM Switch series supports console video output resolutions up to 3840 x 2160 @ 30 Hz.
