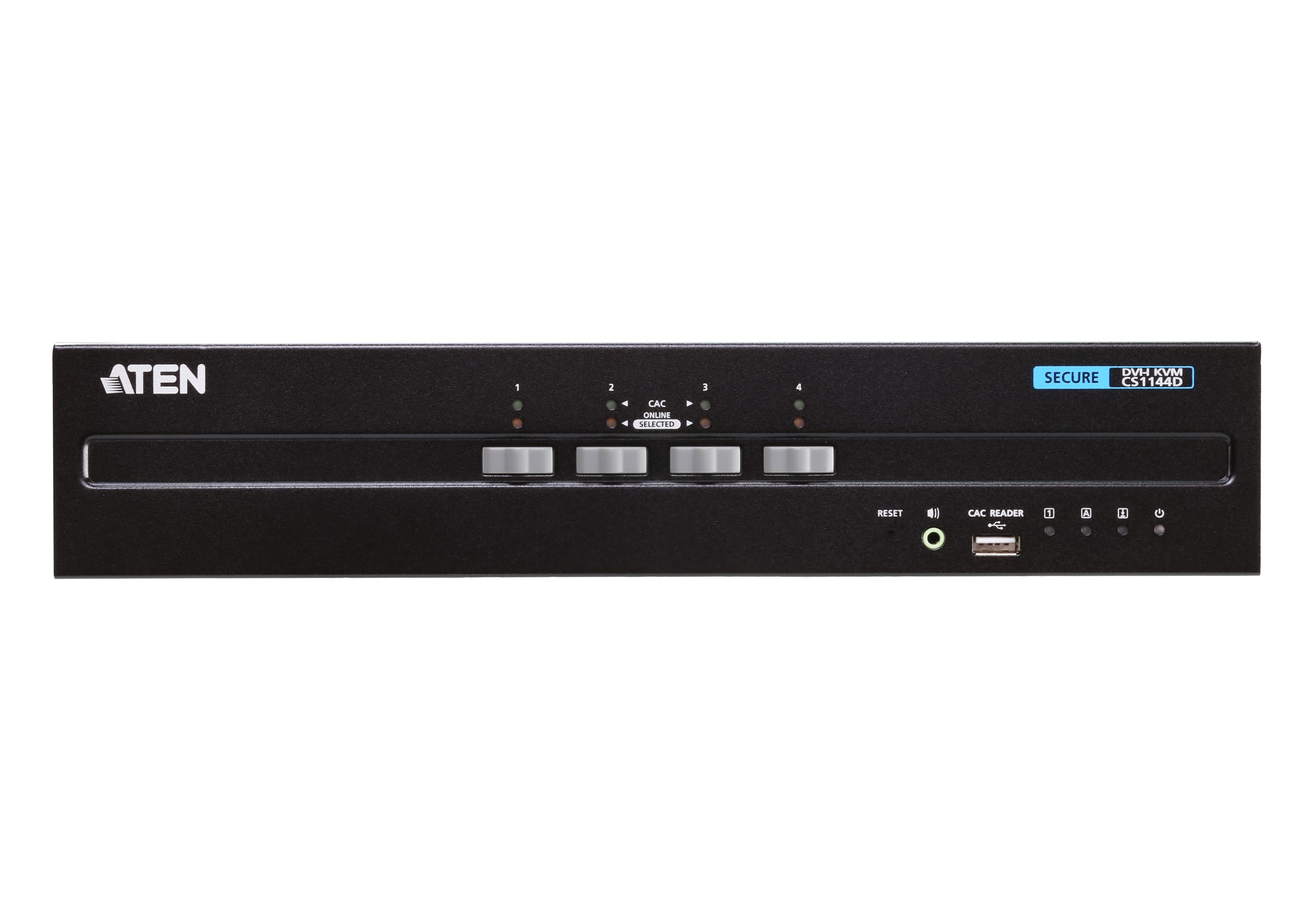

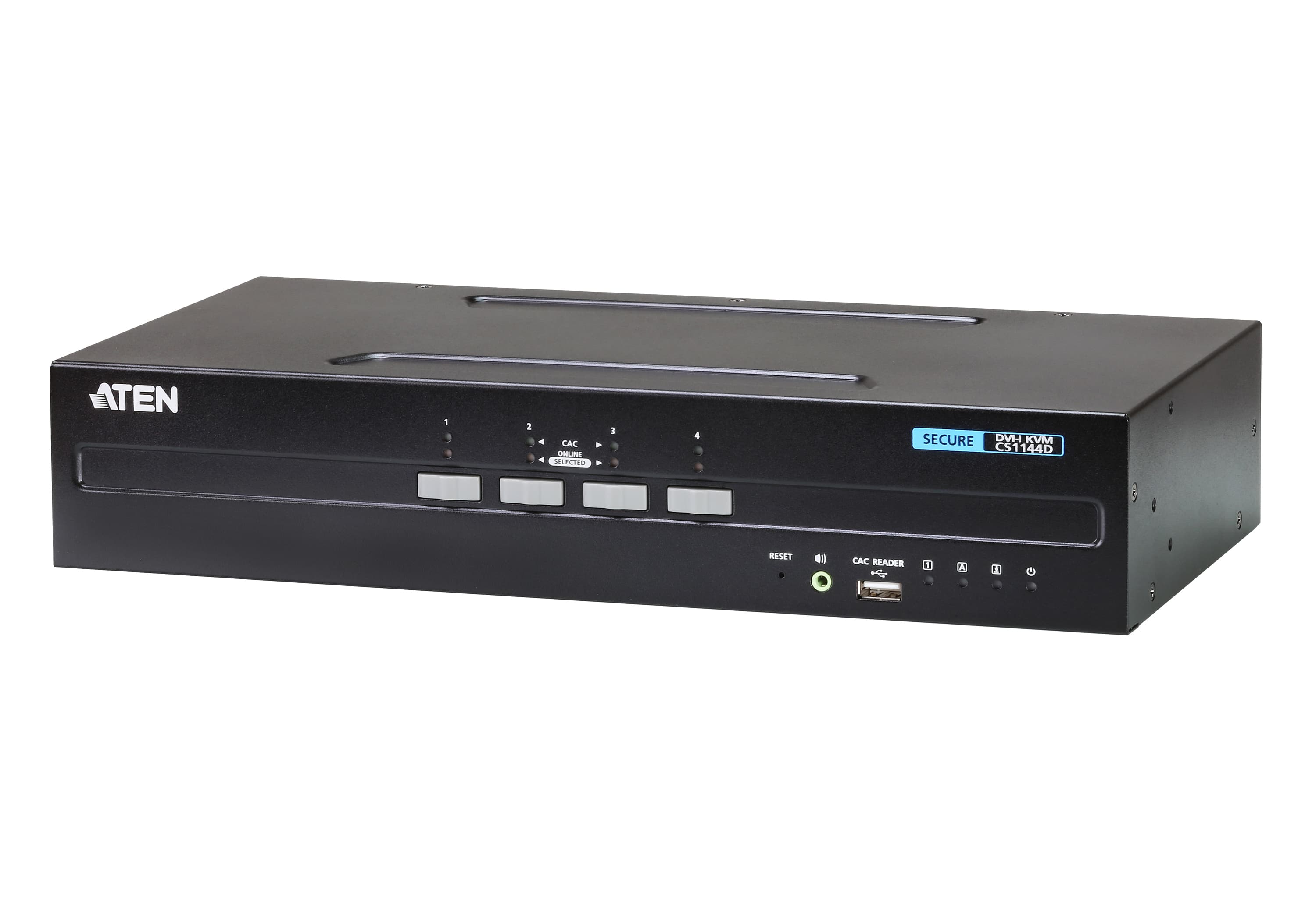

4-Port USB DVI Dual Display Secure KVM Switch (PSS PP v3.0 Compliant)
CS1144DСнет от производство
Защитен KVM комутатор за 4 компютъра с по два DVI изхода към обща конзола с два монитора. Съответства на PSS PP v3.0, с преден USB порт за CAC устройства и защита срещу физическа намеса.
Характеристики
- Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) security requirements
- Restricted USB Connectivity – non-authorized HIDs (Human Interface Devices) or non-predefined CAC devices will be rejected / ignored
- Always-on Chassis Intrusion Detection – renders the ATEN PSS PP v3.0 Secure KVM Switches inoperable when physical tampering is detected
- Tamper-Evident Seals– provides visual indication of any attempt to access the ATEN PSS PP v3.0 Secure KVM Switches’ internal components
- Non-Reprogrammable Firmware – prevents reprogramming the ATEN PSS PP v3.0 Secure KVM Switches
- Port selection via pushbuttons only to enhance security
- LED indicators for peripheral filtering and KVM security status
- Rugged metal enclosure
- Data Channel Isolation – prevents data leakage between connected computers via isolated channel per port
- Unidirectional Data Flow – ensures unidirectional data flow between the console devices and the selected computer
- ATEN PSS PP v3.0 Secure KVM Switches control and isolate data flow between the console devices and connected computers
- Supports analog audio (speaker only)*
- User Data Protection – Keyboard/Mouse data buffer is automatically purged when switching KVM port focus
- KVM Log Data – provides administrative functions for authorized administrator to audit KVM log data
- Configurable Device Filtering – USB CAC Port can be configured to allow/reject whitelisted / blacklisted devices via Admin logon function or Windows-based application
- Supports enable / disable CAC function by port
- Superior video quality – up to 4K (3840 x 2160 @ 30 Hz), 2560 x 1600 (DVI Dual Link), 1920 x 1200 (DVI Single Link), and 2048 x 1536 (DVI-A)**
- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching between ports * Only analog speaker data input is supported. The ATEN PSS PP v3.0 Secure KVM Switches does not convert digital audio to analog audio. ** DVI Secure KVM Switches offer 3840 x 2160 @ 30 Hz video output on compatible HDMI-interfaced monitors/computers with ATEN DVI-to-HDMI KVM cables.
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Pushbutton

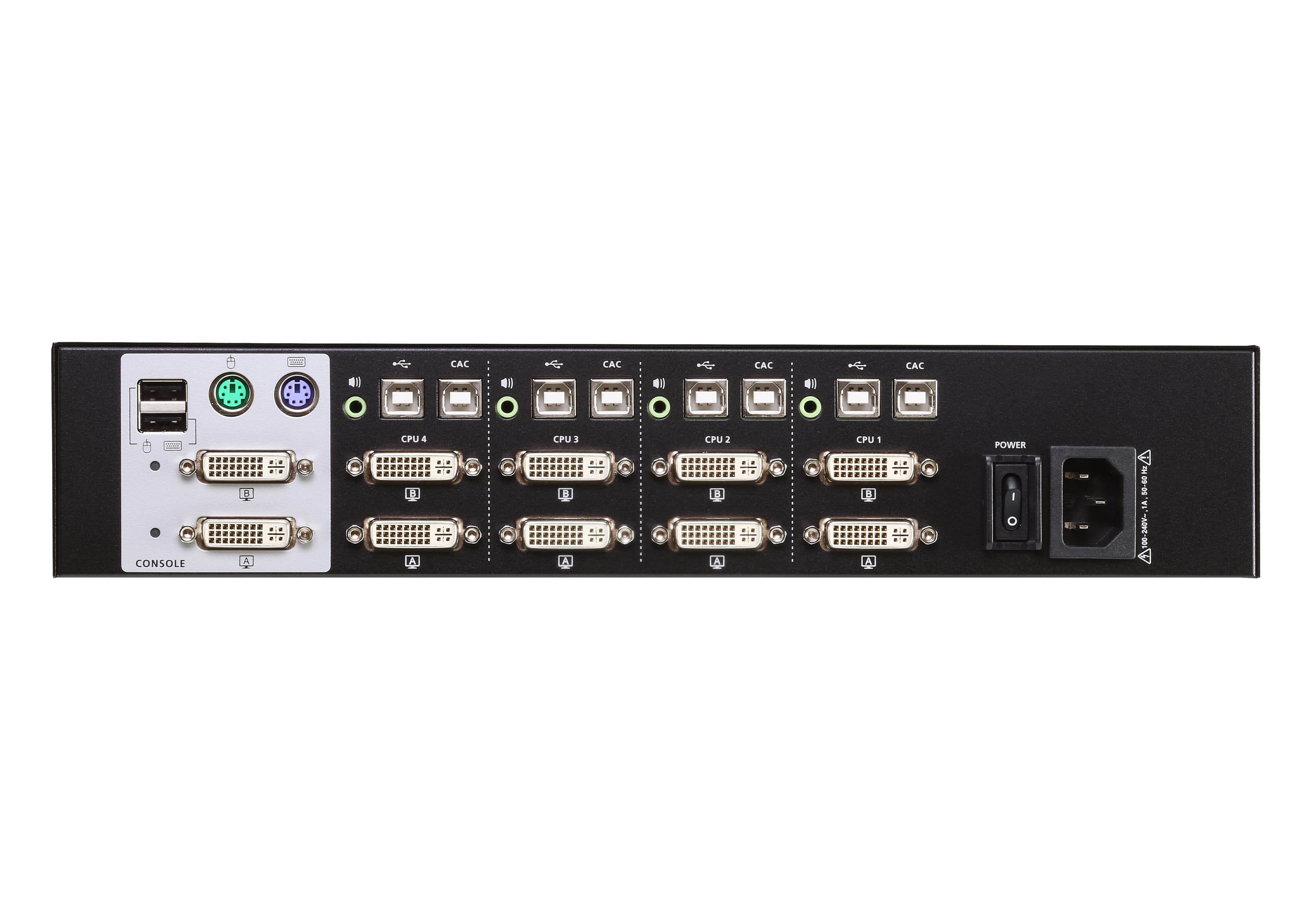

Конектори
- Конзолни портове
- 2 x USB Type-A Female (Black) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 2 x DVI-I Dual Link Female (White) 1 x Mini Stereo Jack Female (Green; front panel)
- KVM портове
- 8 x USB Type-B Female (White) 8 x DVI-I Dual Link Female (White) 4 x Mini Stereo Jack Female (Green)
- Захранване
- 1 x 3-prong AC Socket
- USB CAC порт
- 1 x USB Type-A Female (White; front panel)
Бутони и превключватели
- Избор на порт
- 4 x Pushbuttons
- Нулиране
- 1 x Semi-recessed Pushbutton
- Захранване
- 1 x Rocker
Индикатори
- Захранване
- 1 (Blue)
- Онлайн / избран (KVM порт)
- 4 (Orange)
- Онлайн / избран (CAC порт)
- 4 (Green)
- Видео
- 2 (Green)
- Заключване с ключ
- 3 (Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 3840x2160@30Hz*; DVI Dual Link: 2560x1600; DVI Single Link: 1920x1200 DVI-A: 2048x1536
- Макс. входна мощност
- 100–240V~; 50-60 Hz; 1A
- Консумация
- AC110V:8.2W:58BTU/h AC220V:7.8W:56BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.18 kg ( 4.8 lb )
- Размери (Д x Ш x В)
- 33.50 x 16.39 x 6.55 cm (13.19 x 6.45 x 2.58 in.)
- Забележка
- * DVI Secure KVM Switches support up to 3840 x 2160 @ 30 Hz video output on compatible HDMI-interfaced monitors/computers with ATEN DVI-to-HDMI KVM cables.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
