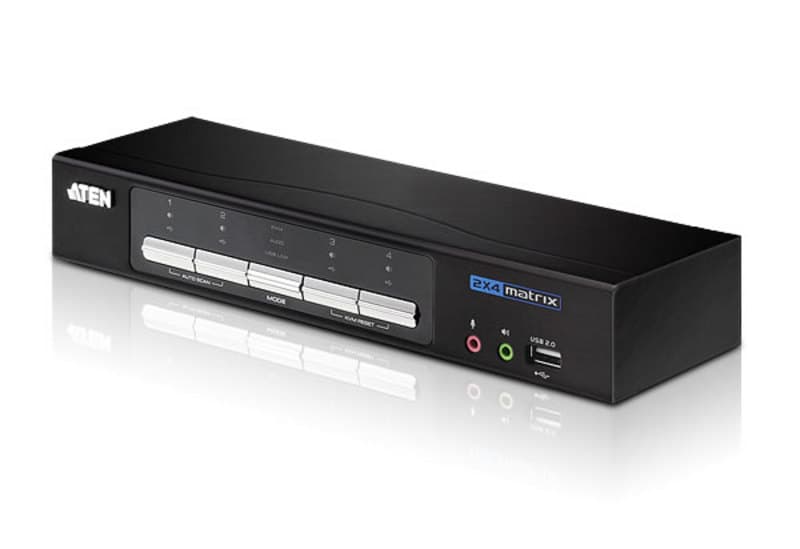

2x4 DVI-HD Audio/Video Matrix KVMP™ Switch
CM0264Снет от производство

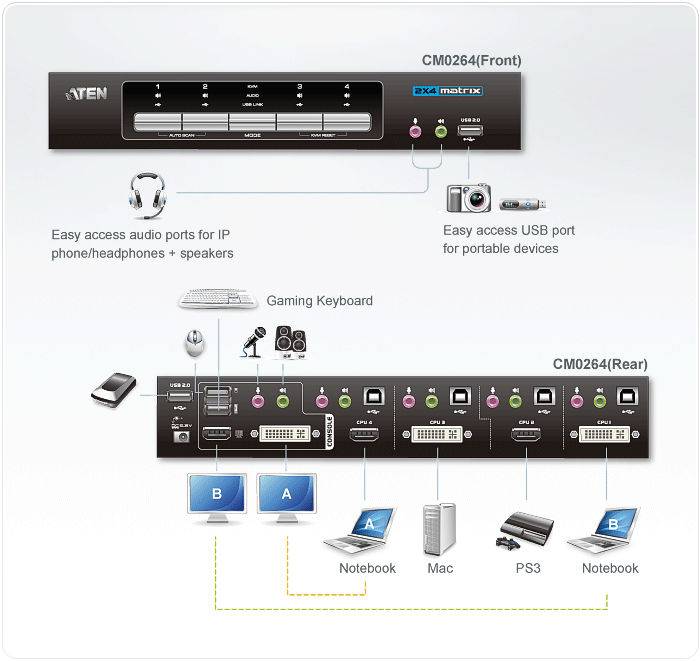

Матричен KVMP превключвател 2x4 с конзола за два дисплея — един DVI и един HD. Управлява два DVI и два HD компютъра; има GUI и вграден USB хъб.
Характеристики
- One Dual Display USB console independently and simultaneously controls two DVI computers, two HD computers or devices, and two additional USB devices
- Dual Display – simultaneously control one computer on one display and view another source on the other display
- Graphical User Interface (GUI) for convenient, user-friendly operation
- Innovative desktop control features include on-screen fi le transfer and copy-paste functionality, and cursor shift function in dual display mode
- 2-port USB 2.0 hub built in; fully compliant with USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus
- Computer selection via front panel pushbuttons, hotkeys, and GUI
- HDMI compatible; HDCP compatible
- Dolby True HD and DTS HD Master Audio support
- Superior video quality – up to 1920 x 1200 (DVI Single Link), 1080p (HDMI)
- Supports widescreen resolutions
- Multiplatform support – Windows, Linux, and Mac
- Cursor Shift Function – in dual-display mode, the mouse cursor can move back and forth across both displays, shifting the KVM focus
- Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection – if one of the computers is powered off, the CM0264 automatically switches to the next powered-on computer
- Console keyboard port emulation/bypass feature supports most gaming/multimedia keyboards
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable * 1. PC keyboard combinations emulate Mac keyboards. 2. Mac keyboards only work with their own computers
Спецификация
- Връзки към компютри
- 4
- Избор на порт
- Hotkey, GUI, Pushbutton, Mouse cursor shift

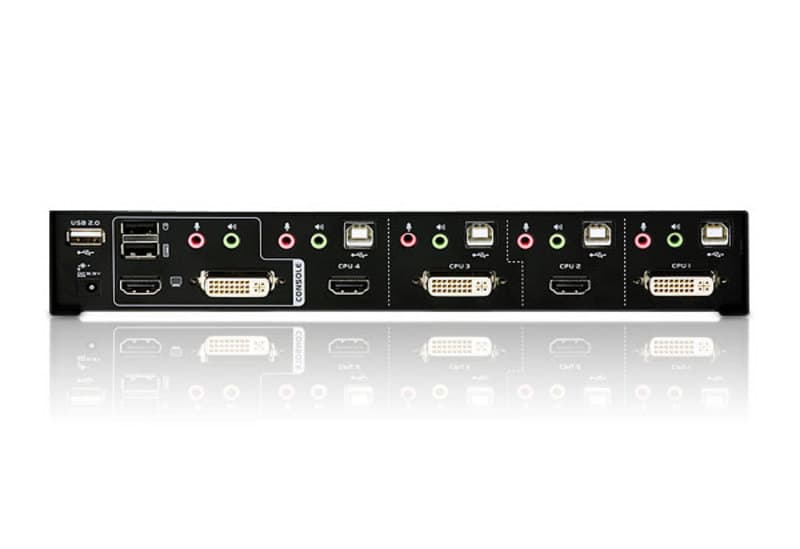

Конектори
- Конзолни портове
- 2 x USB Type A Female (Black; rear panel) 1 x DVI-I Female (White) 1 x HD Female (Black) 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear)
- KVM портове
- 4 x USB Type B Female (White) 2 x HD Female (Black) 2 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
- Захранване
- 1 x DC Jack (Black)
- USB хъб
- 2 x USB Type A Female (White; 1 x front panel; 1 x rear panel)
Бутони и превключватели
- Избран
- 5 x Pushbutton
Индикатори
- KVM
- 5 (Orange/Green)
- Аудио
- 5 (Green)
- USB
- 5(Green)
Емулация
- Клавиатура / мишка
- USB
- Видео
- 1080p (HDMI) / 1920 x 1200 (DVI)
- Интервал на сканиране
- 1 - 99 secs. (Default: 5 secs)
- Консумация
- DC5.3V, 10W Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0 - 50°C
- Температура на съхранение
- -20 - 60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 0.86 kg ( 1.89 lb )
- Размери (Д x Ш x В)
- 26.00 x 7.73 x 4.20 cm (10.24 x 3.04 x 1.65 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Фърмуер
