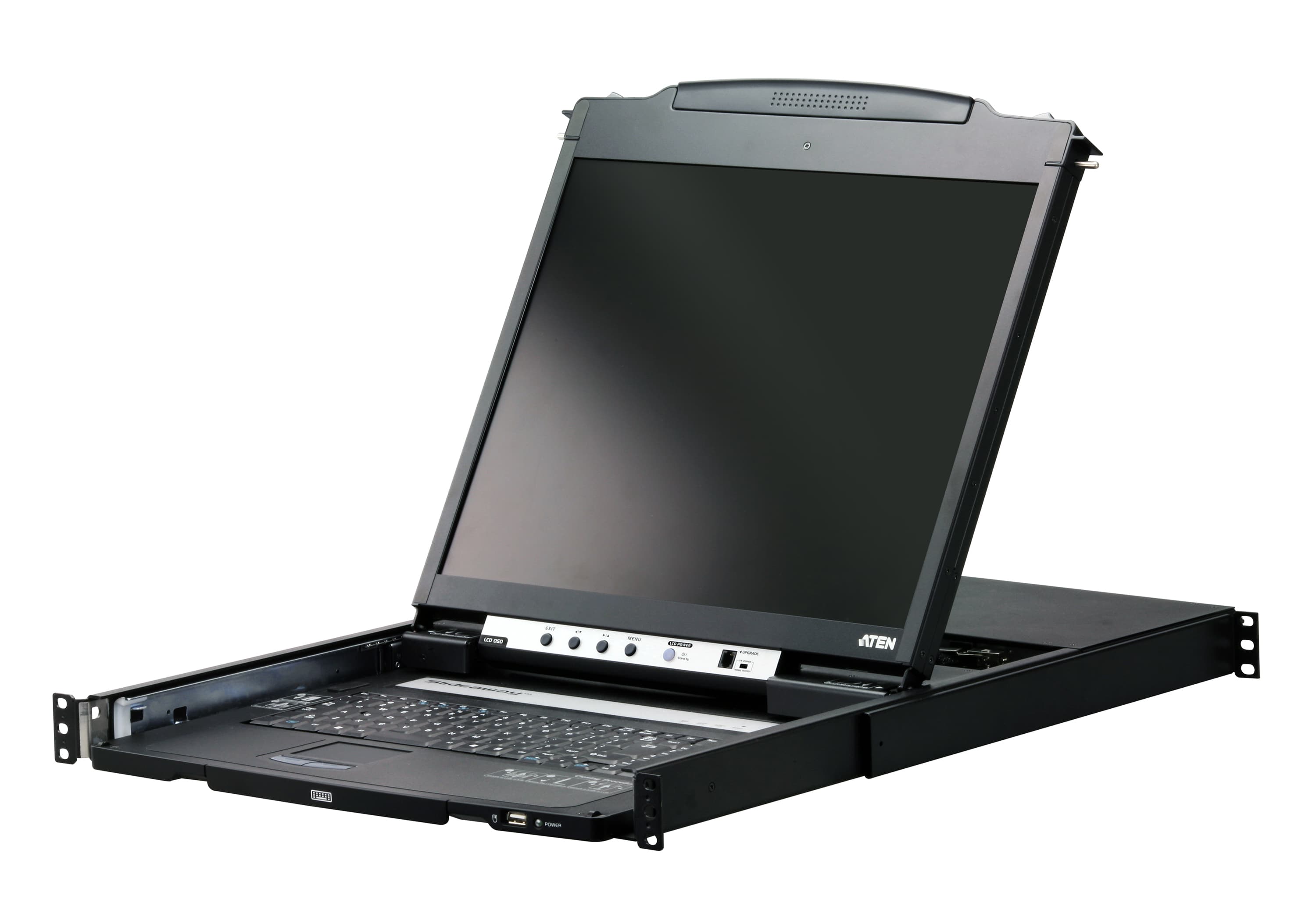

LCD KVM конзола с 19-инчов панел с LED подсветка, клавиатура и тъчпад в 1U плъзгащ се корпус с двойна релса за монтаж в rack.
Характеристики

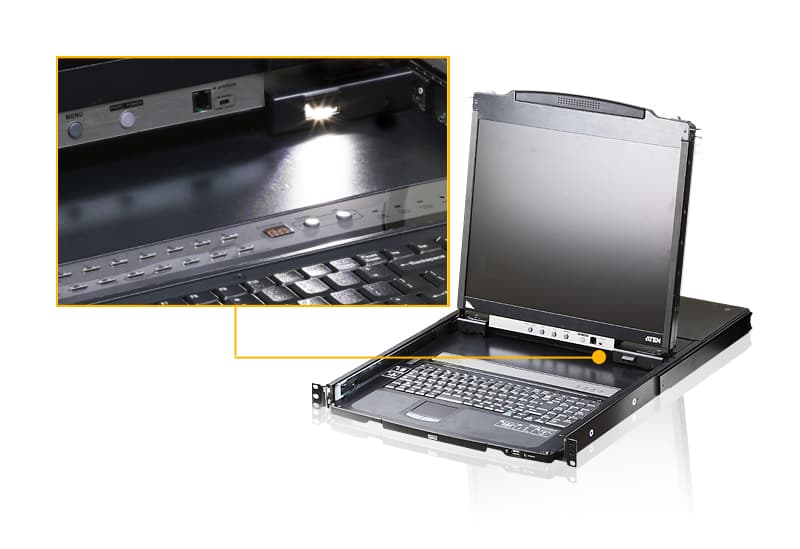

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
- Standard rack mount kit included
- Supports an external console* with either PS/2 or USB connectors
- Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
- Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
- Embedded power supply
- High video resolution: • Up to 1280 x 1024 @75Hz • Supports DDC, DDC2, DDC2B • DDC emulation of the LCD monitor • Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Standard 105-key keyboard; Sun keyboard emulation
- Dual rail design allows LCD monitor and keyboard/touch pad modules to operate independently
- Firmware upgradeable
- Supports Microsoft Intellimouse (5 keys)
- Supports Logitech and Microsoft wireless mice
- Optional rack mount kits available including easy installation options
- Console lock - enables the console drawer to remain securely locked away in position when not in use * Connect to a KVM over IP solution (e.g. CN8000A) for over-the-Internet access at a remote location. More information about "Easy Rack Mounting"...
Спецификация
- Функция
- CL5800N
Връзки към компютри
- Директно
- 1
- Избор на конзола
- Hotkey

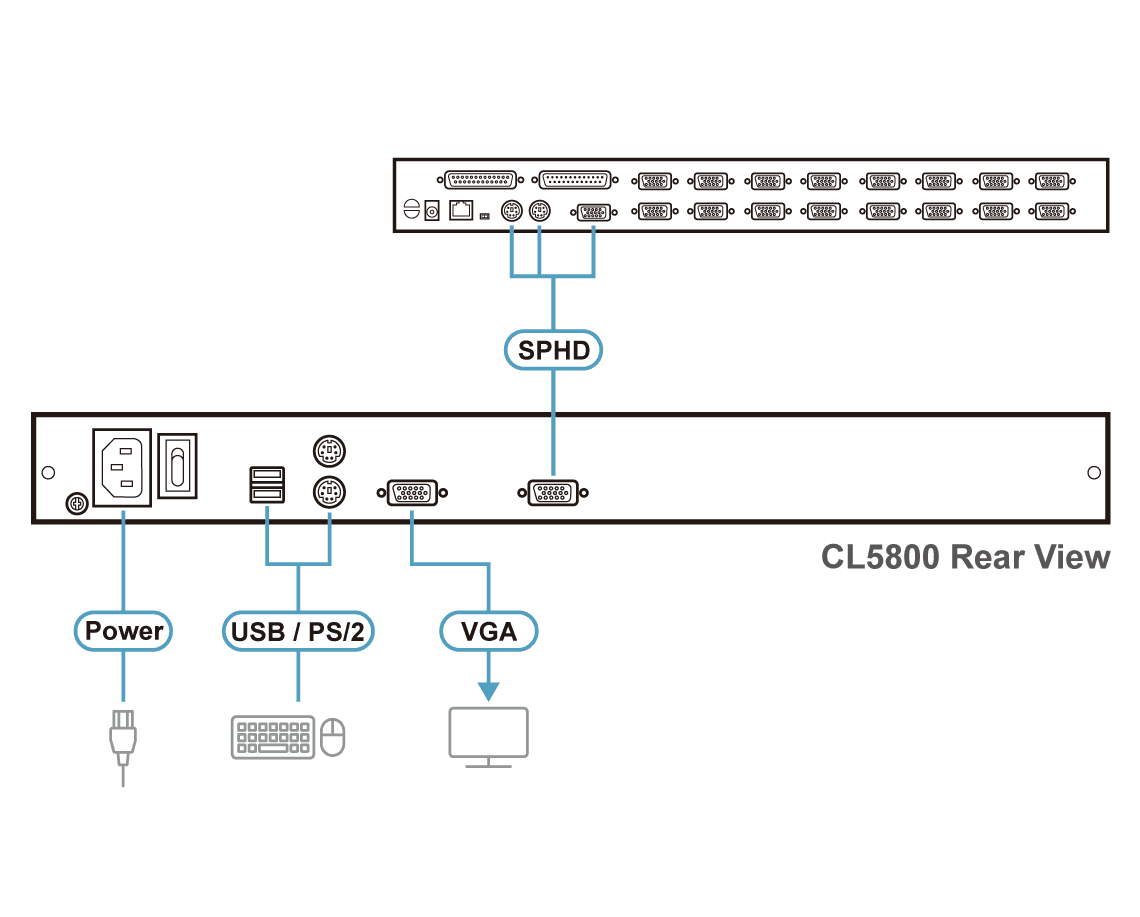

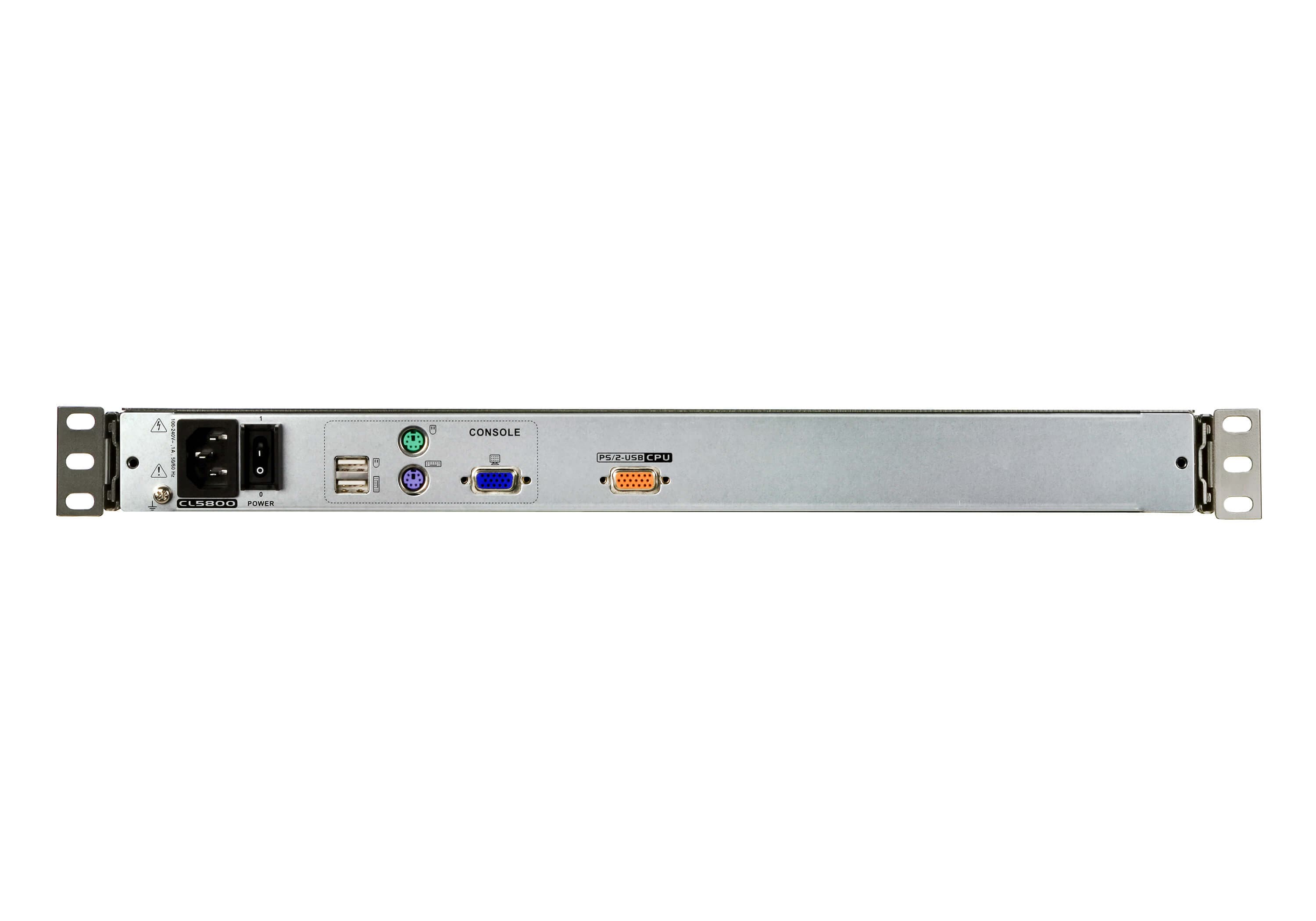

Конектори
- KVM портове
- 1 x SPHD Female (Yellow)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC 60320/C14
- Външни конзолни портове
- 1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- Външна мишка / периферия
- 1 x USB Type A Female (Front)
Бутони и превключватели
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Захранване
- 1 x KVM Console (Dark Green) 1 x LCD (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 19" TFT-LCD
- Резолюция
- 1280 x 1024 @ 75 Hz
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.294 mm x 0.294 mm
- Поддържани цветове
- 16.7M colors
- Контраст
- 1000:1
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 x 1200 @ 60Hz; 1280 x 1024 @ 75 Hz, DDC2B
Емулация
- Клавиатура / мишка
- PS/2, USB
- Макс. входна мощност
- 100-240V AC; 50–60Hz; 1A
- Консумация
- AC110V:22.2W:115BTU/h AC220V:22.9W:118BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–50°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тип релси
- Dual Rail
- Тегло
- 14.27 kg ( 31.43 lb )
- Размери (Д x Ш x В)
- 48.00 x 68.04 x 4.40 cm (18.9 x 26.79 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
