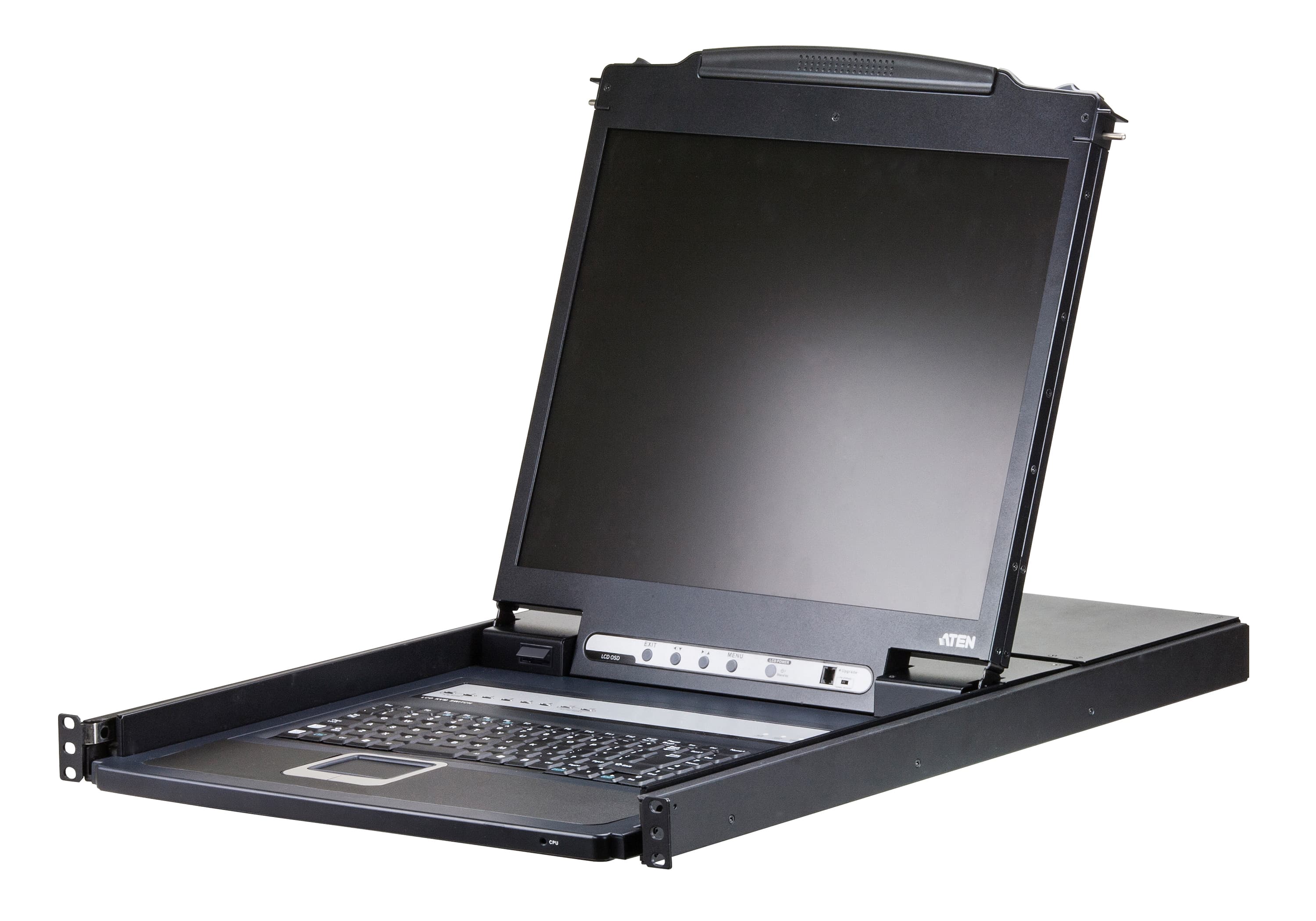

8-Port PS/2-USB VGA Single Rail LCD KVM Switch
CL1308
LCD KVM превключвател с 19-инчов панел за 8 компютъра с PS/2 или USB — чрез каскадиране една конзола управлява до 128 машини. Избор на порт през OSD, клавиши или бутони.
Характеристики

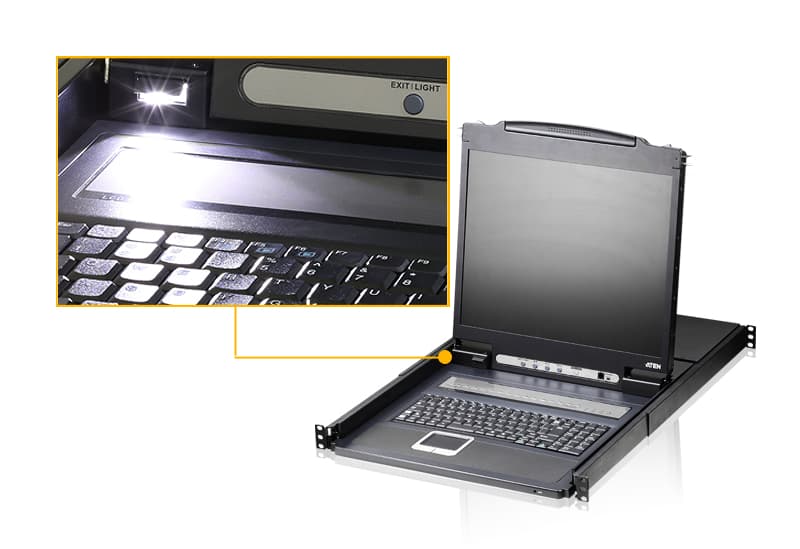

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- A single console controls up to 128 computers by cascade to 2 levels and connect up to 8 switches.
- Integrated KVM console with 19" LED-backlit LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Optional rack mount kits available including easy installation options
- Keyboard language supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese and Turkish. More information about "Easy Rack Mounting"...
Спецификация
- Функция
- CL1308N
Връзки към компютри
- Директно
- 8
- Максимум
- 128 (via Cascade)
- Избор на порт
- OSD, Hotkey, Pushbutton

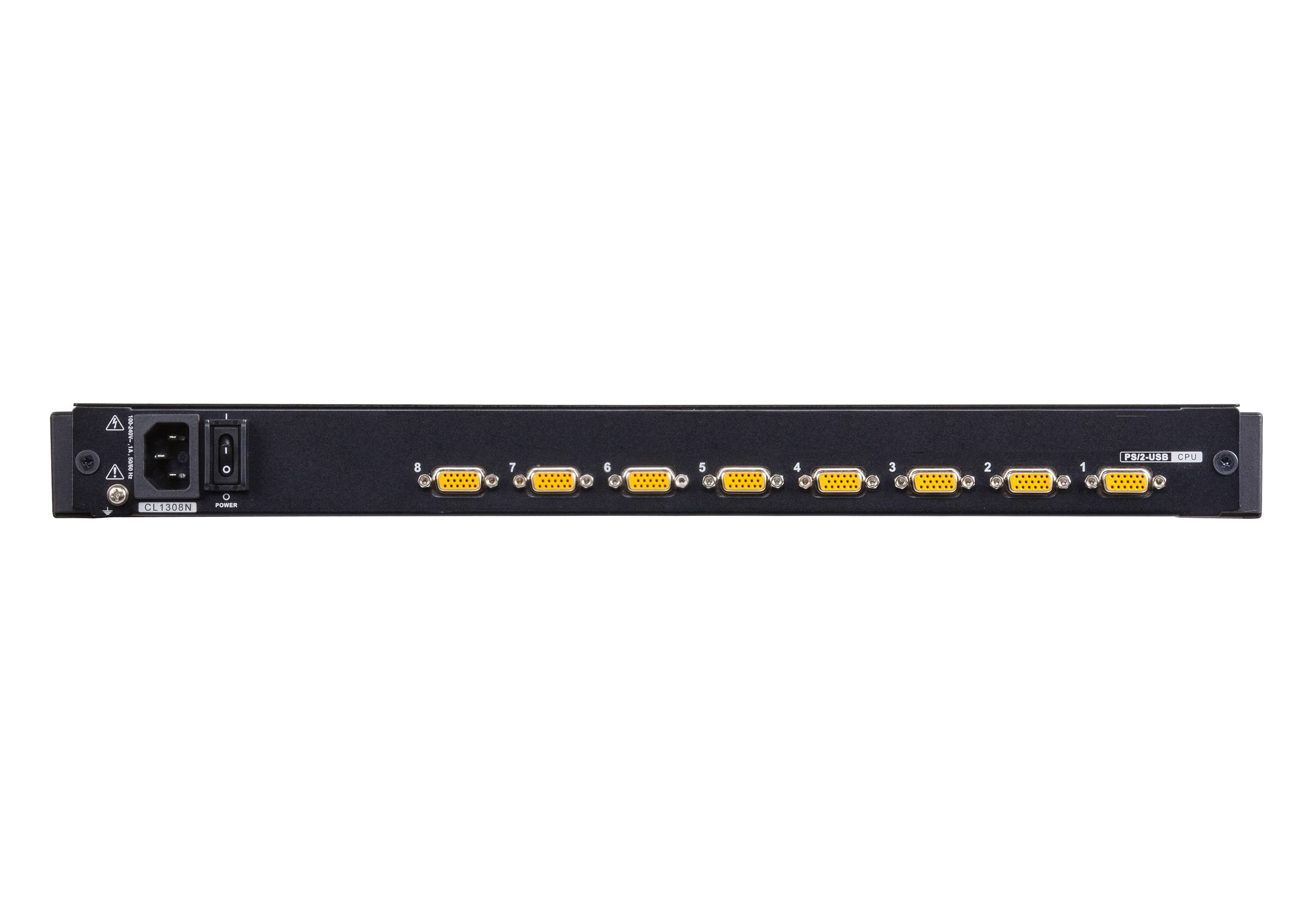

Конектори
- KVM портове
- 8 x SPHD Female (Yellow)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC 60320/C14
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
- Захранване на дисплея
- 1 x LED Pushbutton
Индикатори
- Онлайн
- 8 (Orange)
- Избран
- 8 (Green)
- Захранване
- 1 (Dark Green) 1 (Orange)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 19" TFT-LCD
- Резолюция
- 1280 ×1024 @ 75 Hz
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.294 mm x 0.294 mm
- Поддържани цветове
- 16.77M colors
- Контраст
- 1000:1
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
- Интервал на сканиране
- 1-255 seconds
Емулация
- Клавиатура / мишка
- PS/2, USB
- Макс. входна мощност
- 100-240 V AC; 50-60 Hz; 1A
- Консумация
- AC110V:24.4W:114BTU/h AC220V:24.7W:116BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal + Plastic
- Тип релси
- Single Rail
- Тегло
- 12.59 kg ( 27.73 lb )
- Размери (Д x Ш x В)
- 48.30 x 68.92 x 4.40 cm (19.02 x 27.13 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
