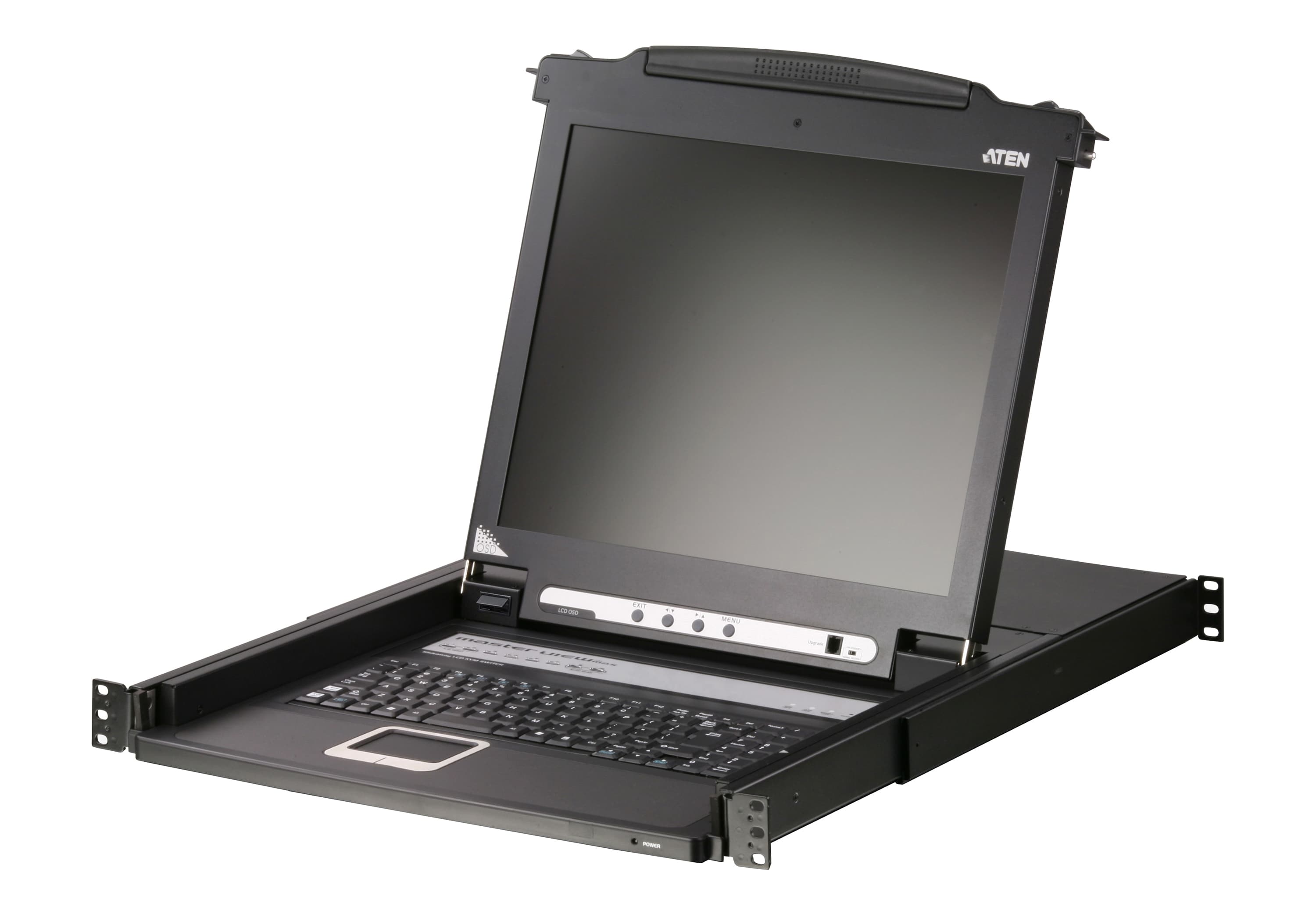

8-Port PS/2-USB VGA Single Rail LCD KVM Switch
CL1008Снет от производство
LCD KVM превключвател със 17" LED-подсветен монитор — една конзола управлява 8 компютъра, чрез daisy-chain до 128. Избор на порт през OSD, клавишни комбинации или бутони; LCD модулът се завърта до 120 градуса.
Характеристики

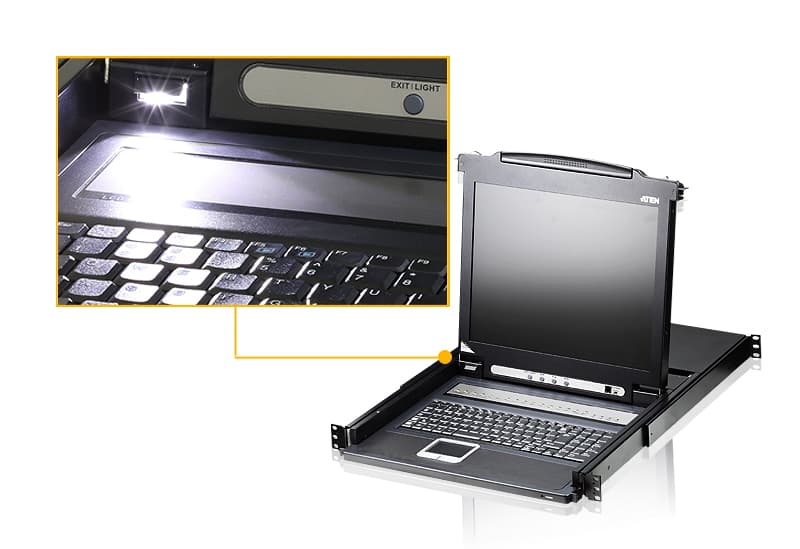

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Standard rack mount kit included - optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
- Daisy-chain up to 15 additional units - control up to 128 computers
- No software required - convenient computer selection via hotkeys and mouse driven intuitive on screen display (OSD) menus
- Auto Scan feature for monitoring user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Two level password security - only authorized users view and control the computers; up to four users plus an administrator with separate profiles for each
- Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
- Upgradable firmware
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD
- Optional rack mount kits available including easy installation options
- Keyboard Language support: English (US), English (UK),French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese More information about "Easy Rack Mounting"...
Връзки към компютри
- Директно
- 8
- Максимум
- 128 (via Daisy-chain)
- Избор на порт
- OSD, Hotkey, Pushbutton

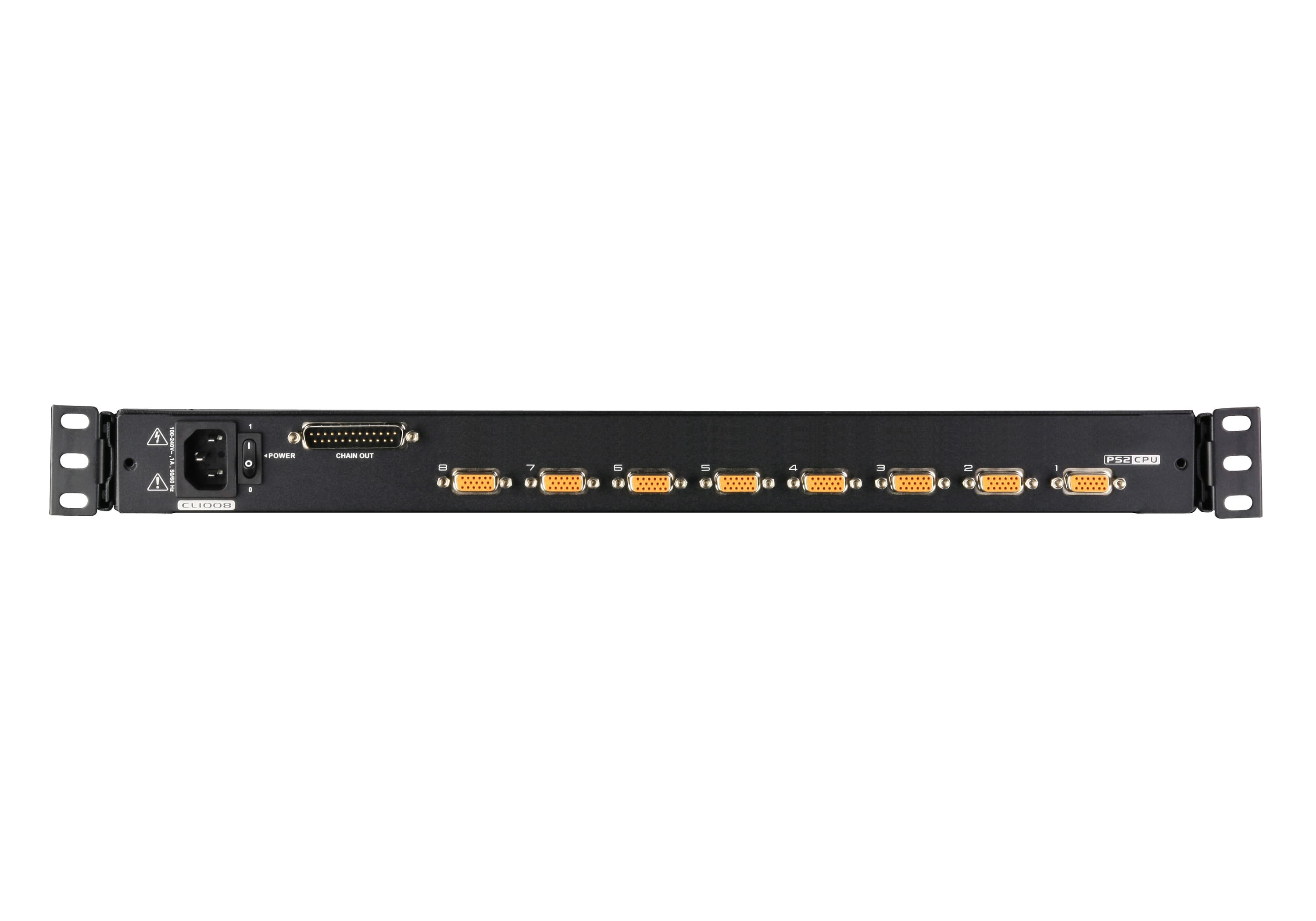

Конектори
- KVM портове
- 8 x SPHD Female (Yellow)
- Daisy Chain портове
- 1 x DB-25 Male
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x IEC 60320/C14
Бутони и превключватели
- Избор на порт
- 8 x Pushbutton
- Нулиране
- 1 x Semi-recessed Pushbutton
- Обновяване на фърмуера
- 1 x Slide Switch
- Захранване
- 1 x Rocker Switch
- Управление на дисплея
- 4 x Pushbutton
Индикатори
- Онлайн
- 8 (Orange)
- Избран
- 8 (Green)
- Захранване
- 1 (Dark Green)
- Заключване
- 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
- LED осветление
- 1 x LED Illumination Light
Панел
- LCD модул
- 17" TFT-LCD
- Резолюция
- 1280 × 1024 @ 75 Hz
- Време за реакция
- 5 ms
- Зрителен ъгъл
- 170° (H), 160° (V)
- Стъпка на пикселите
- 0.264 mm x 0.264 mm
- Поддържани цветове
- 16.77M colors
- Контраст
- 1000 : 1
- Яркост
- 250 cd/m²
Видео
- Входна видео резолюция
- up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
- Интервал на сканиране
- 1-255 seconds
Емулация
- Клавиатура / мишка
- PS/2, USB(via 2L-520xUP cables)
- Макс. входна мощност
- 100-240V AC, 50-60 Hz, 1A
- Консумация
- AC110V:21.3W:100BTU/h AC220V:23.6W:111BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-40˚C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal + Plastic
- Тип релси
- Single Rail
- Тегло
- 13.34 kg ( 29.38 lb )
- Размери (Д x Ш x В)
- 48.00 x 64.02 x 4.40 cm (18.9 x 25.2 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
