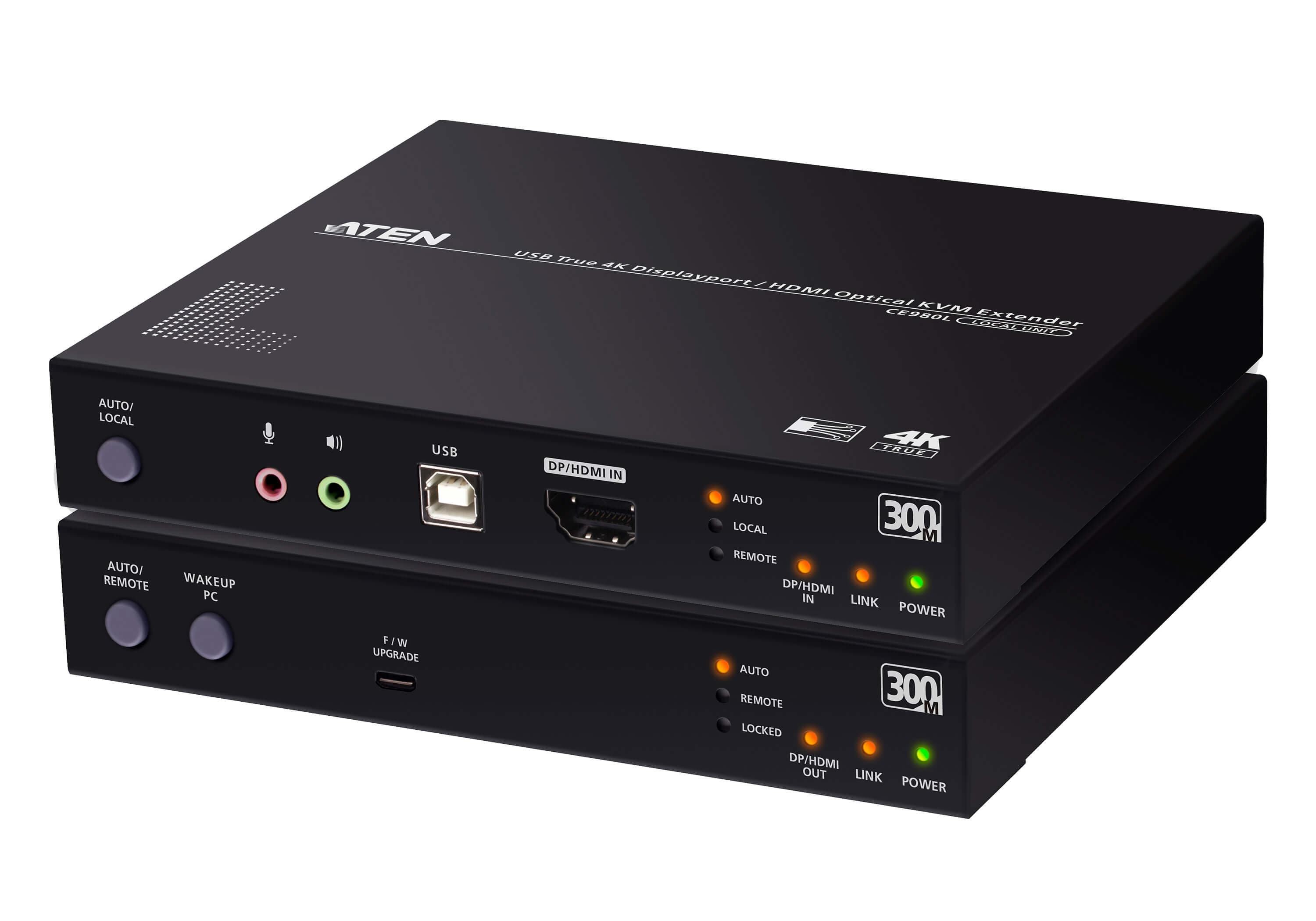

USB True 4K DisplayPort/HDMI Optical KVM Extender (True 4K @ 300 m)
CE980
Оптичен KVM удължител с комбиниран DisplayPort/HDMI конектор: пренася True 4K видео (4096x2160@60Hz 4:4:4), USB 2.0, аудио и RS-232 на разстояние до 300 m.
Характеристики

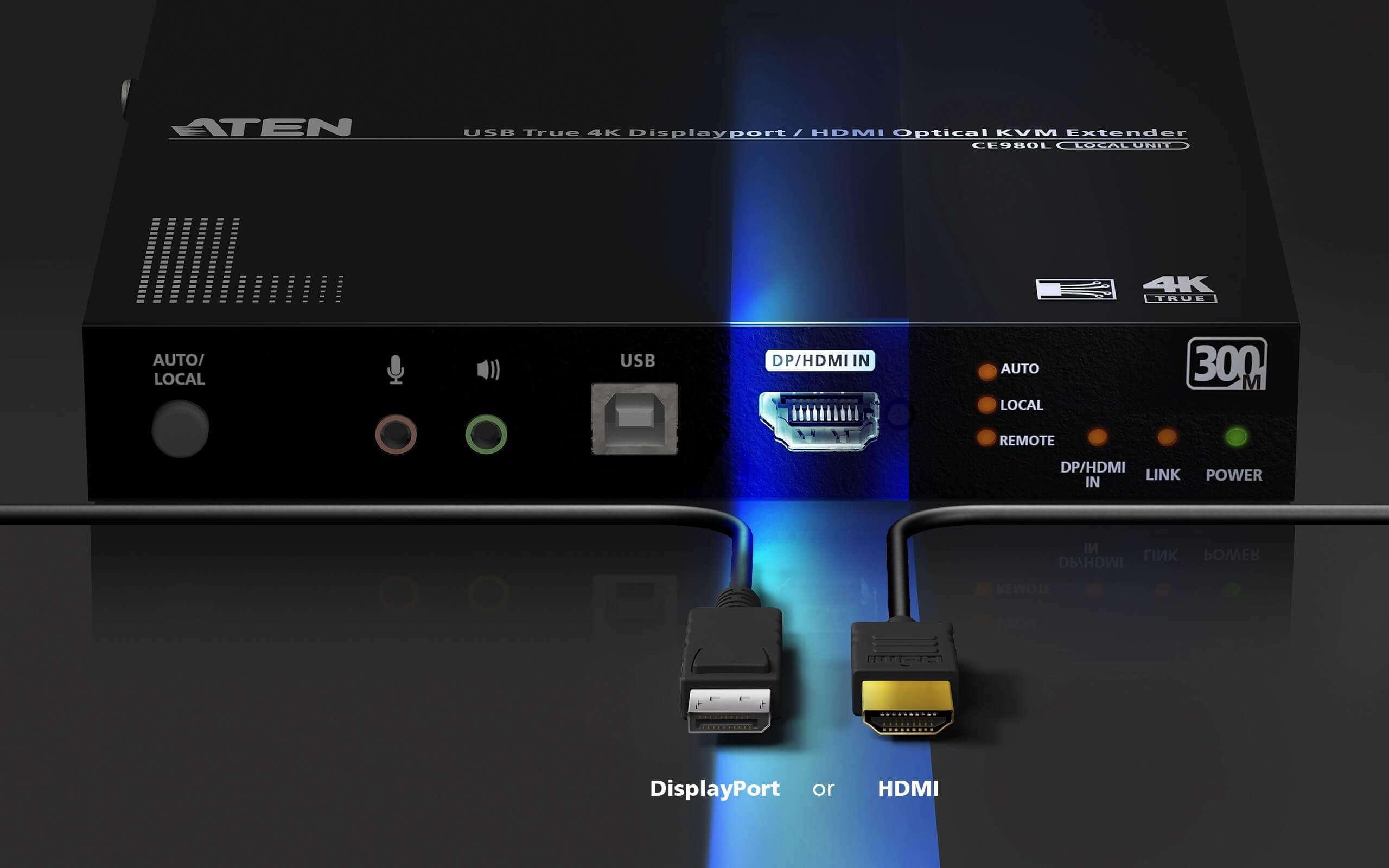

- DisplayPort/HDMI combo connector supports both DisplayPort and HDMI video interfaces
- Extends DisplayPort/HDMI video, keyboard/mouse control, stereo/embedded audio, RS-232 control, and USB 2.0 signals over fiber optic cabling
- Ultra-long distance transmission up to 300m
- Supports True 4K video up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) with HDCP 2.2/2.3 compliance
- Supports HDR10 for enhanced video quality
- Dual console operation – supports local and remote system control with configurable privilege modes (Auto/Local and Auto/Remote) for streamlined access management and operational efficiency
- USB 2.0 Hub – supports 2 ports for USB KB/MS and 2 ports for other USB peripherals
- Easily switch EDID priority between Local and Remote via hotkey
- Supports wide screen format
- Supports dual independent stereo audio – mic and speaker
- Supports lossless digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
- Works with SFP Module 2A-141G (300 m, multi-mode) to offer 10Gbps transmission via a single fiber cable
- 2X-EA17 HDMI Lock Pro for combo connector to secure HDMI cables to selected devices and prevent signal loss caused by the connector detaching
- PC wakeup function via a single pushbutton through RS-232 channel
- Plug-and-play operation with no software or driver required
- DC Jack with screw-lock ensures stable and secure connection
- Built-in 8KV/15KV ESD protection
- Rack-mountable
- Firmware upgradeable

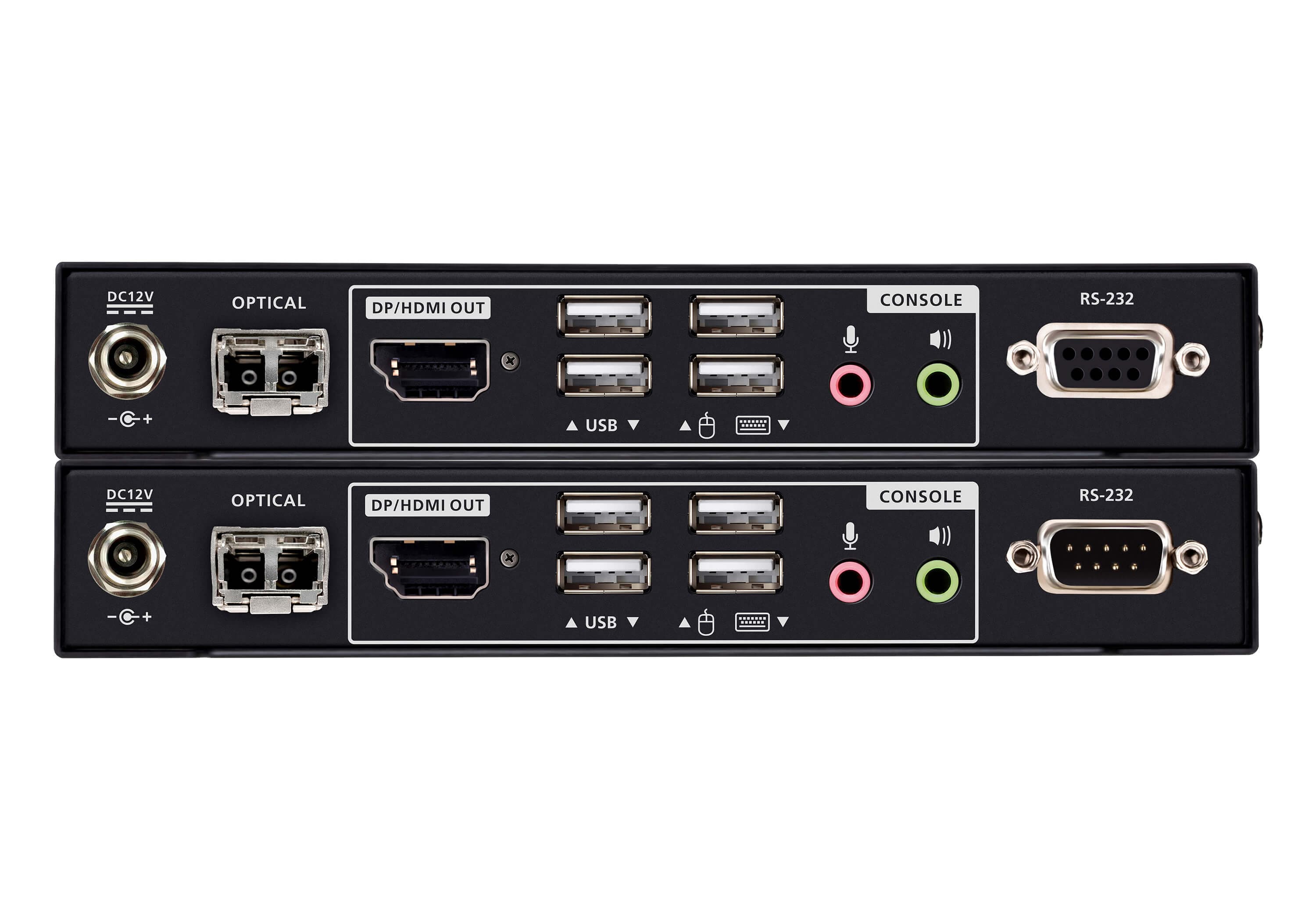

Конектори
- Конзолни портове
- 4 x USB Type A Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- Конзолни портове
- 4 x USB Type A Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- 1 x USB Type B Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink)
- KVM портове
- N/A
- RS-232
- 1 x DB-9 Female (Black)
- RS-232
- 1 x DB-9 Male (Black)
- Захранване
- 1 x DC Jack (Black)
- Захранване
- 1 x DC Jack (Black)
- Между устройства
- 1 x bi-directional SFP+ (LC)
- Между устройства
- 1 x bi-directional SFP+ (LC)
Видео
- Макс. резолюция
- Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4)
- Макс. резолюция
- Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4)
Индикатори
- Видео вход
- 1 (Orange)
- Видео вход
- N/A
- Състояние на конзолата
- 3 (Orange)
- Състояние на конзолата
- 3 (Orange)
- Видео изход
- N/A
- Видео изход
- 1 (Orange)
- Връзка
- 1 (Orange)
- Връзка
- 1 (Orange)
- Захранване
- 1 (Green)
- Захранване
- 1 (Green)

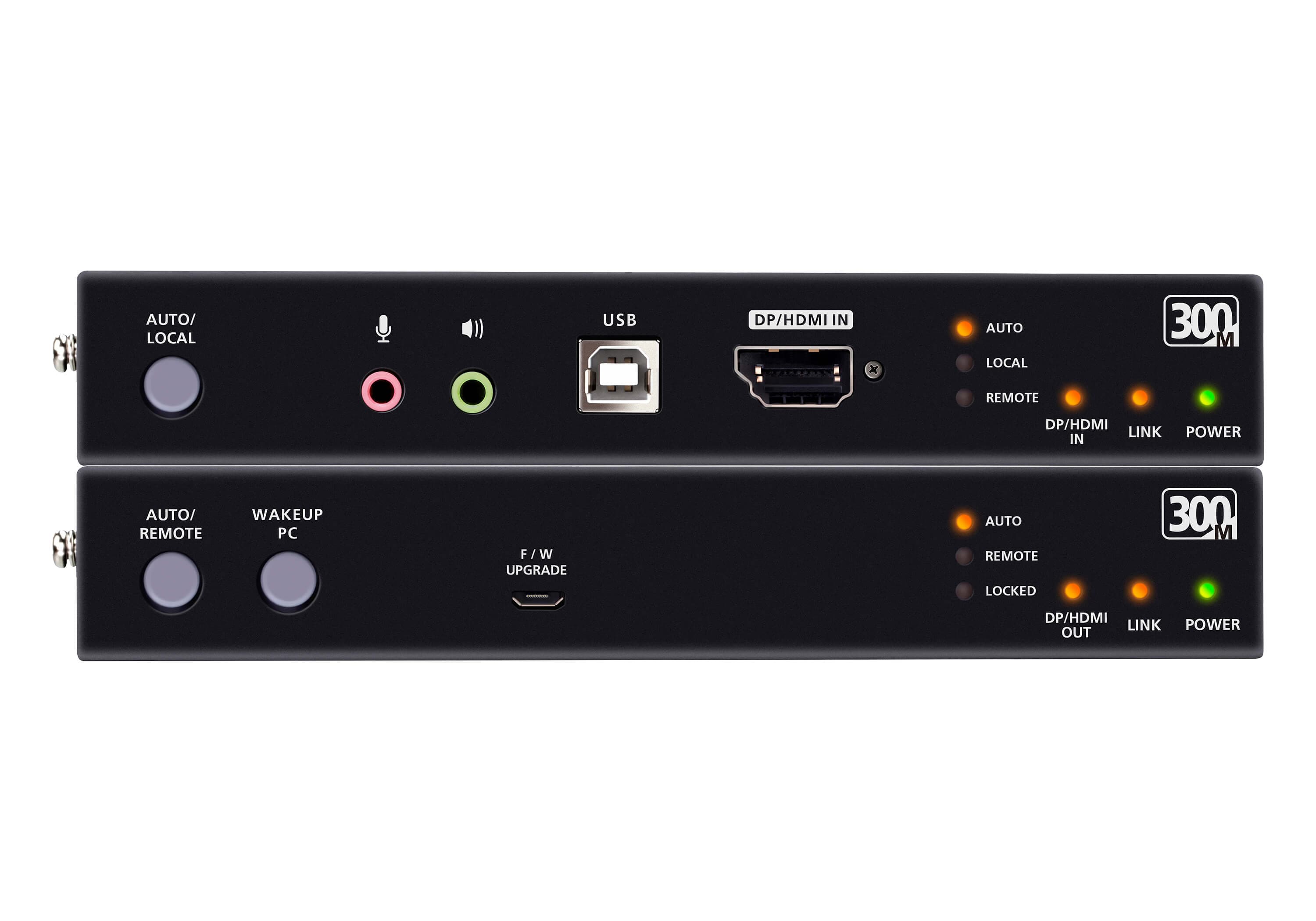

Бутони и превключватели
- Избор на работен режим
- 1 x Pushbutton
- Избор на работен режим
- 1 x Pushbutton
- Събуждане на компютъра
- N/A
- Събуждане на компютъра
- 1 x Pushbutton
Оптични влакна
- Работно разстояние
- 300 m with Multi Mode (MM) fiber (*Note)
- Работно разстояние
- 300 m with Multi Mode (MM) fiber (*Note)
- Скорост на данните
- Single fiber: 10 Gbps
- Скорост на данните
- Single fiber: 10 Gbps
- Консумация
- DC12V:11.89W:86BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
- Консумация
- DC12V:9.49W:81BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0–40°C
- Работна температура
- 0–40°C
- Температура на съхранение
- -20–60°C
- Температура на съхранение
- -20–60°C
- Влажност
- 0–80% RH, Non-condensing
- Влажност
- 0–80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Корпус
- Metal
- Тегло
- 0.85 kg ( 1.87 lb )
- Тегло
- 0.84 kg ( 1.85 lb )
- Размери (Д x Ш x В)
- 17.82 x 15.62 x 2.88 cm (7.02 x 6.15 x 1.13 in.)
- Размери (Д x Ш x В)
- 17.82 x 15.62 x 2.88 cm (7.02 x 6.15 x 1.13 in.)
- Забележка
- 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
- Забележка
- 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11.
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
- True 4K HDMI
- Local
- True 4K HDMI
- Remote
- 640 x 480 @ 60/67/72/75 Hz
- 640 x 480 @ 60/67/72/75 Hz
- 640 x 480 60 Hz (4:3)
- 720 x 400 @ 70 Hz
- 720 x 400 @ 70 Hz
- 800 x 600 @ 56/60/72/75 Hz
- 800 x 600 @ 56/60/72/75 Hz
- 1024 x 768 @ 60/70/75 Hz
- 1024 x 768 @ 60/70/75 Hz
- 1280 x 800 @ 60 Hz
- 1280 x 800 @ 60 Hz
- 1280 x 1024 @ 60/75 Hz
- 1280 x 1024 @ 60/75 Hz
- 1400 x 1050 @ 60 Hz
- 1400 x 1050 @ 60 Hz
- 1440 x 900 @ 60 Hz
- 1440 x 900 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 1680 x 1050 @ 60 Hz
- 1680 x 1050 @ 60 Hz
- 1920 x 1080 @ 60/120/144/240 Hz
- 1920 x 1080 @ 60/120/144/240 Hz
- 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking)
- 1920 x 1200 @ 60 Hz
- 1080p @ 24/25/30/50/60 Hz
- 1920 x 1200 @ 60 Hz (Reduced Blanking)
- 1080i @ 50/60 Hz
- 1080p @ 24/25/30/50/60 Hz
- 720p @ 50/60 Hz
- 1080i @ 50/60 Hz
- 576p @ 50 Hz (4:3/16:9)
- 720p @ 50/60 Hz
- 480p @ 60 Hz (4:3/16:9)
- 576p @ 50 Hz (4:3, 16:9)
- 640 x 480 @ 60 Hz (4:3)
- 480p @ 60 Hz (4:3, 16:9)
- 3840 x 2160p @ 24/25/30/50/60 Hz
- 3840 x 2160p @ 24/25/30/50/60 Hz
- 3840 x 2160p @ 50/60 Hz (4:2:0)
- 3840 x 2160p @ 50/60 Hz (4:2:0)
- 4096 x 2160p @ 24/25/30/50/60 Hz
- 4096 x 2160p @ 24/25/30/50/60 Hz
- 4096 x 2160p @ 50/60 Hz (4:2:0)
- 4096 x 2160p @ 50/60 Hz (4:2:0)
- True 4K DP
- 640 x 480 @ 60/75 Hz
- True 4K DP
- 640 x 480 @ 60/75 Hz
- 800 x 600 @ 60/75 Hz
- 800 x 600 @ 60/75 Hz
- 1024 x 768 @ 60/75 Hz
- 1024 x 768 @ 60/75 Hz
- 1280 x 800 @ 60 Hz
- 1280 x 800 @ 60 Hz
- 1280 x 1024 @ 60/75 Hz
- 1280 x 1024 @ 60/75 Hz
- 1400 x 1050 @ 60 Hz
- 1400 x 1050 @ 60 Hz
- 1440 x 900 @ 60 Hz
- 1440 x 900 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 1600 x 1200 @ 60 Hz
- 1680 x 1050 @ 60 Hz
- 1680 x 1050 @ 60 Hz
- 1920 x 1080 @ 60 Hz
- 1920 x 1080 @ 60 Hz
- 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking)
- 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking)
- 1080p @ 50/60/120/144 Hz
- 1080p @ 50/60/120/144 Hz
- 480p @ 60 Hz
- 480p @ 60 Hz
- 720p @ 50/60 Hz
- 720p @ 50/60 Hz
- 3840 x 2160p @ 24/25/30/50/60 Hz
- 3840 x 2160p @ 24/25/30/50/60 Hz
- 4096 x 2160p @ 24/25/30/50/60 Hz
- 4096 x 2160p @ 24/25/30/50/60 Hz
