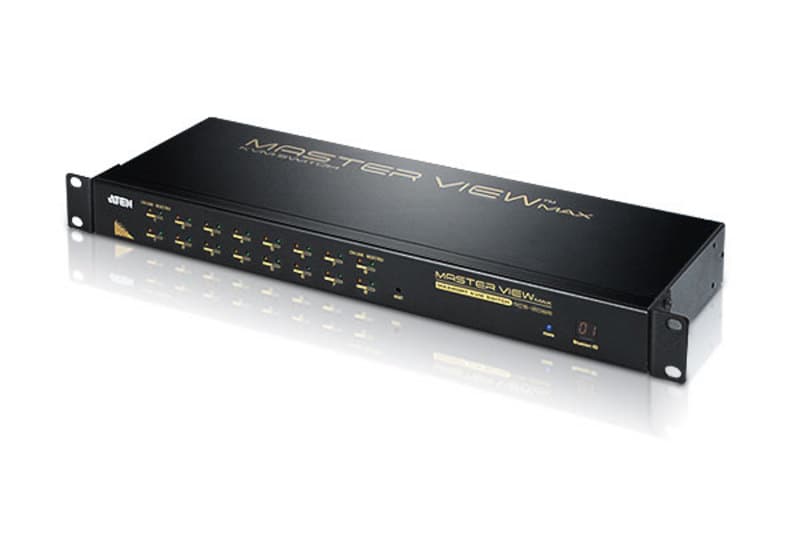

16-Port PS/2 VGA KVM Switch with Daisy-Chain Port
ACS1216AСнет от производство

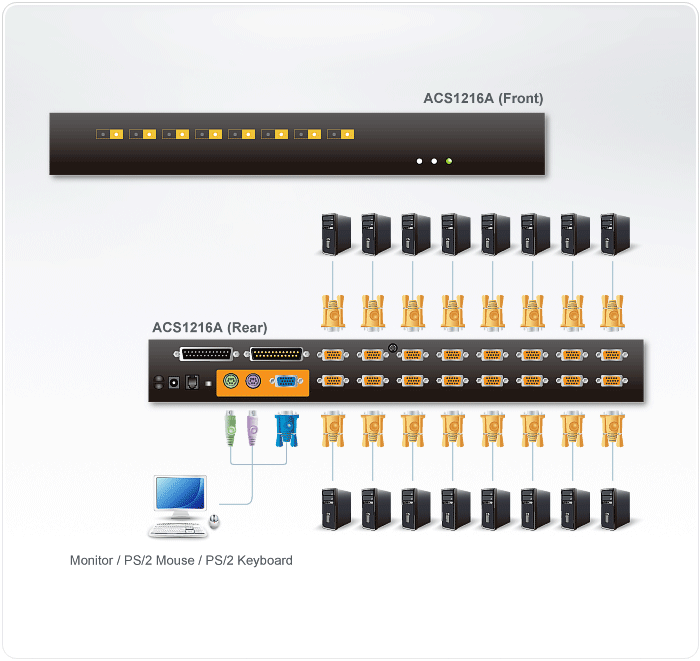

KVM превключвател в 1U — една PS/2 конзола управлява 16 компютъра, а чрез daisy-chain на още 31 устройства до 512. Изборът на порт е през OSD или клавишни комбинации.
Характеристики
- One PS/2 console controls 16 computers.
- Daisy chain up to 31 additional units - Control up to 512 computers from a single console.
- Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable.
- Buzzer ON/OFF via hotkey and OSD.
- Broadcast Mode: Operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown....etc.
- Auto-sensing of station's position on daisy chained installations - no need for manual DIP switch setting - front panel LED indicates station's position.
- Computer selection via hotkeys and OSD.
- Superior video quality- up to 2048 x 1536; DDC2B.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.
- For more information about KVMs which can connect to ACS1216A, see Compatible KVM Table.
Връзки към компютри
- Директно
- 16
- Максимум
- 512 (via Daisy-chain)
- Избор на порт
- OSD, Hotkey

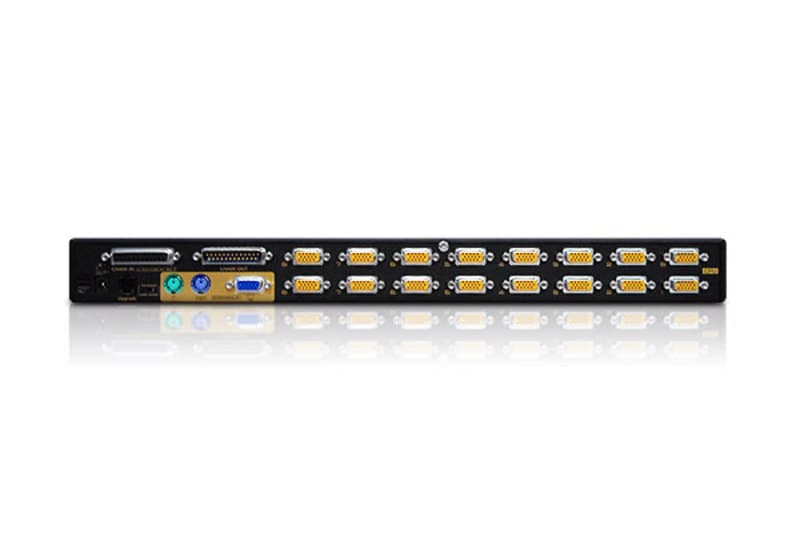

Конектори
- Конзолни портове
- 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green)
- KVM портове
- 16 x SPHD-15 Female (Yellow)
- Daisy Chain портове
- 1 x DB-25 Female (Black) 1 x DB-25 Male (Black)
- Обновяване на фърмуера
- 1 x RJ-11 Female
- Захранване
- 1 x DC Jack (Black)
Бутони и превключватели
- Обновяване на фърмуера
- 1 x Slide
- Нулиране
- 1 x Semi-recessed Pushbutoon
Индикатори
- Онлайн
- 16 (Orange)
- Избран
- 16 (Green)
- ID на станция
- 2 x 7-segement (Orange)
- Захранване
- 1 (Blue)
Емулация
- Клавиатура / мишка
- PS/2
- Видео резолюция
- 2048 x 1536; DDC2B
- Интервал на сканиране
- 1-255 seconds (default: 5 secs.)
- Консумация
- DC9V:6.27W:34BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0-80% RH, Non-condensing
Физически характеристики
- Корпус
- Metal
- Тегло
- 2.96 kg ( 6.52 lb )
- Размери (Д x Ш x В)
- 43.72 x 15.92 x 4.40 cm (17.21 x 6.27 x 1.73 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
