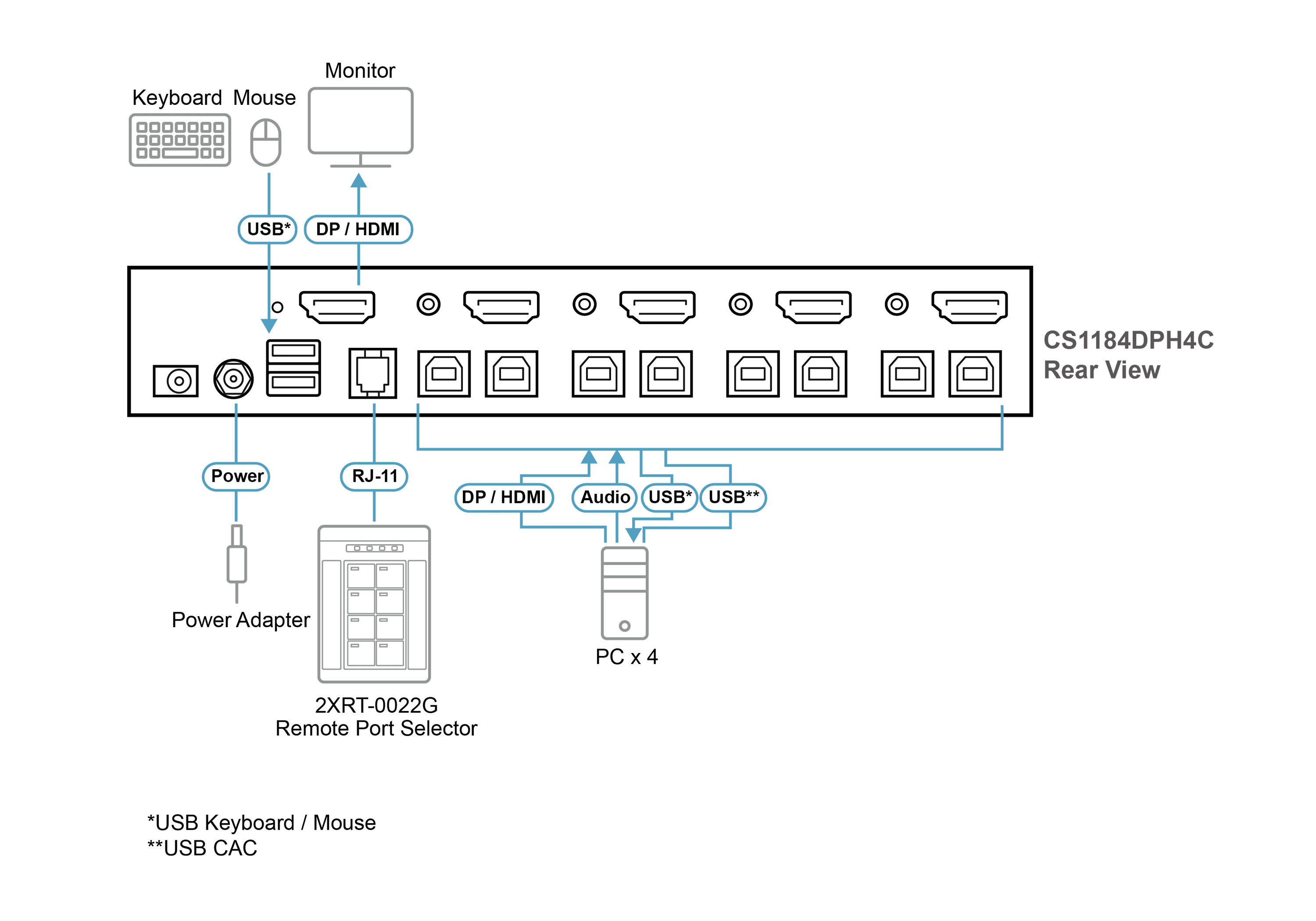

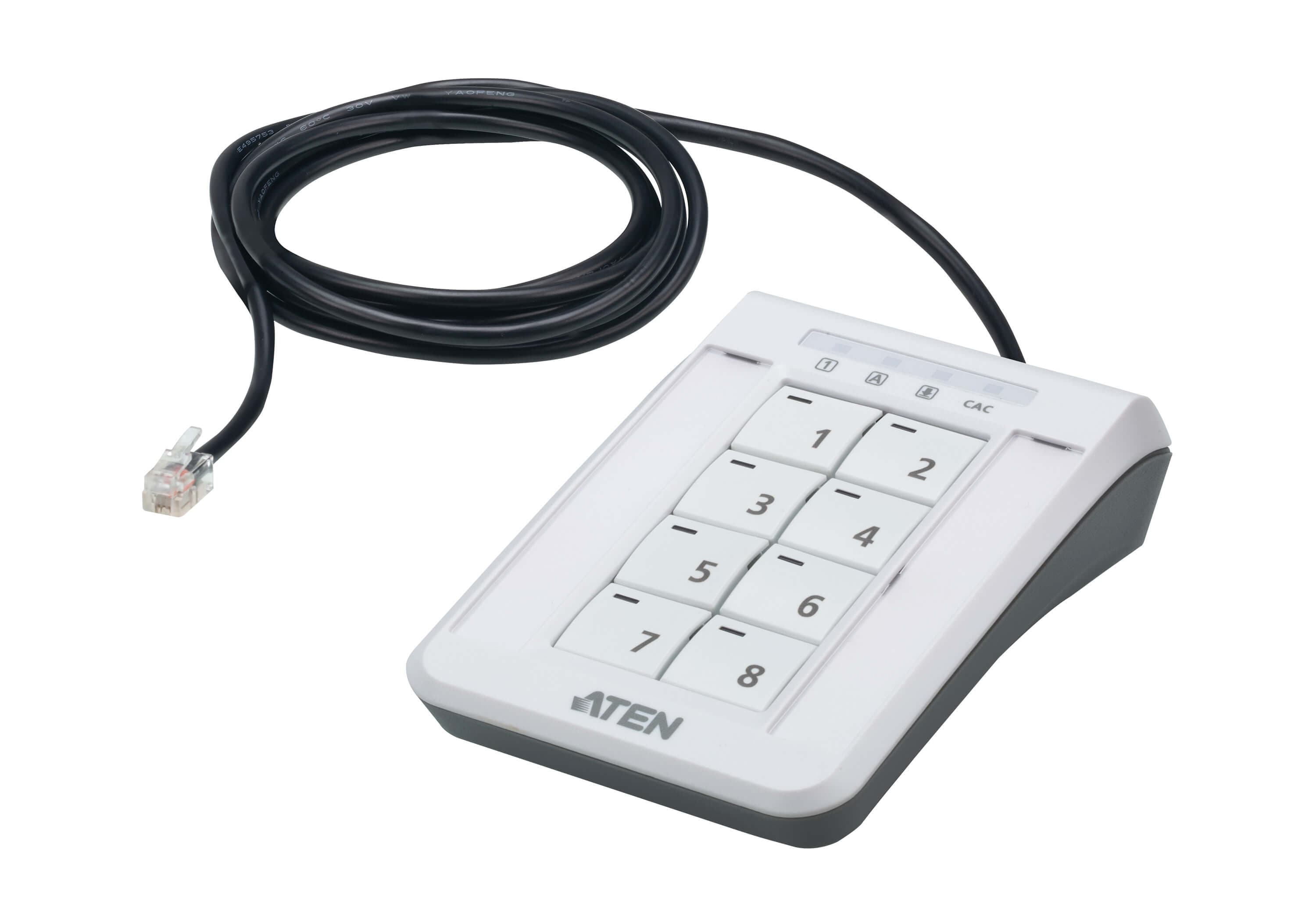

Изнесен селектор за портовете на PP4.0 Secure KVM превключватели, с кабел 1.8 m и работа без допълнителен софтуер. Съвместим с 2/4-портови универсални и 2/4/8-портови DVI/HDMI/DP Secure KVM модели на ATEN.
Характеристики
- Plug-and-Play – no additional software installation is required
- Auto Detection – works with ATEN PP4.0 2/4-Port Universal Secure KVM Switches and ATEN PP4.0 2/4/8-Port DVI/HDMI/DP Secure KVM Switches
- Always-on Chassis Intrusion Detection and Tamper-Evident Label
- Clear LED indications reflect real-time KVM status
- Compact size with 1.8 m cable for easy deployment
Конектори
- Връзка
- RJ-11
Индикатори
- Онлайн / избран (KVM порт)
- 8 (Orange / Green)
- Онлайн / избран (CAC порт)
- 1 (NA / Green)
- Заключване с ключ
- 3 (Green)
- Дължина на кабела
- 1.8 m
- Макс. входна мощност
- 5V; 0.17A
- Консумация
- DC5V:0.43W:2BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Работна среда
- Работна температура
- 0-50°C
- Температура на съхранение
- -20-60°C
- Влажност
- 0 - 80% RH, Non-condensing
Физически характеристики
- Корпус
- Plastic
- Тегло
- 0.14 kg ( 0.31 lb )
- Размери (Д x Ш x В)
- 7.70 x 11.19 x 3.60 cm (3.03 x 4.41 x 1.42 in.)
- Забележка
- For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
